Background







Incidence



Leg length discrepancy (LLD) < 1 cm seen in 90% of population



Etiology



Functional LLD

- LLD caused by contracture

- knee and hip fixed flexion deformity (sagittal plane)

- hip adduction / abduction contractures, knee varus / valgus (coronal plane)



Structural LLD

- true LLD

- short femur / tibia / hip

- multiple causes



Hemihypertrophy / atrophy	Growth plate arrest	Hip	Congenital femoral  deficiency	Leg
Idiopathic Klippel-Trenaunay-Weber syndrome Proteus syndrome Beckwith-Weiderman syndrome Russel-Silver syndrome (atrophy)	Trauma Infection Radiotherapy Tumour	PFFD Coxa vara SUFE DDH Perthe's Infection		Fibula hemimelia Tibial hemimelia Bowing

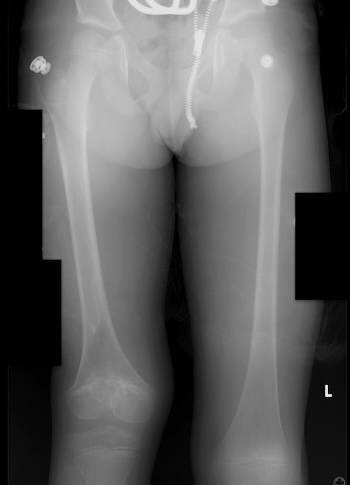

Congenitally short femur                                  Short femur from distal femur growth arrest



Issues



Short leg gait / increased energy expenditure



Khamis et al Gait Posture 2017

- systematic review of effect of LLD and gait

- LLD > 1 cm affected gait



Compensatory scoliosis



Hamada et al Strategies Trauma Limb Recon 2022

- 113 patients with LLD

- LLD 2 cm correlates with Cobb angle of 10 degrees



Low back / hip / knee pain



Gordon et al J Pediatr Orthop 2019

- systematic review

- some evidence of low back pain / hip / knee pathology with LLD > 2 cm

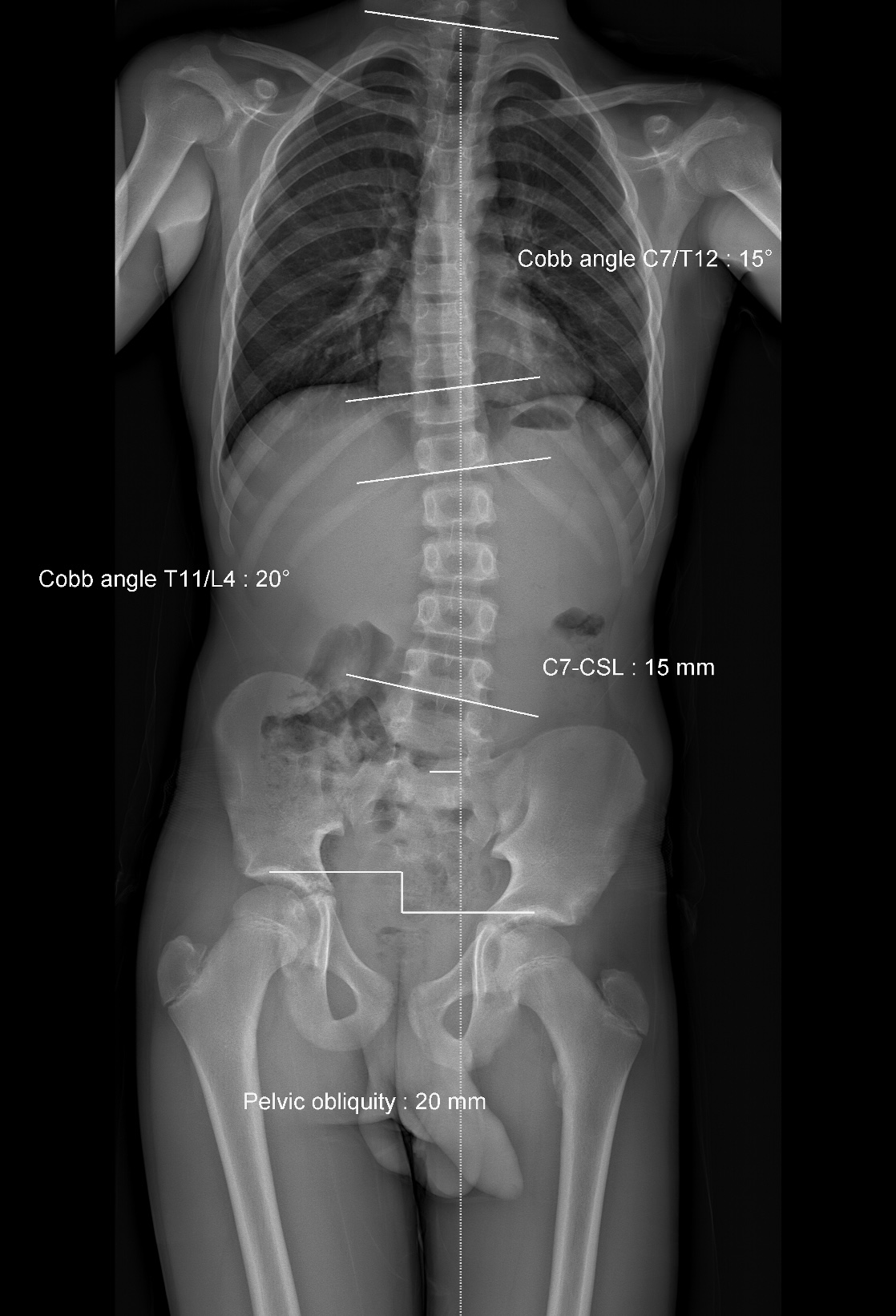

Pelvic obliquity and scoliosis secondary to LLD



Growth



	Proximal femur	Distal femur	Proximal tibia	Distal tibia
Growth	3 mm / year	9 mm / year	6 mm / year	3 mm year
% total leg	15%	37%	28%	20%
% femur	30%	70%
% tibia			60%	40%



Growth cessation

- girls: 14-15

- boys: 16-17



Examination



Look





Pelvic obliquity - corrects with blocks

Scoliosis - corrects with sitting

Long leg - knee held flexed

Short leg - foot in equinus



Gait



Options

- walk on toes with short leg - most common

- walk with flexed knee on long leg - high energy expenditure



Short leg gait - head moves up and down as walk from long leg to short leg



Measure LLD




Functional LLD	Apparent LLD	True LLD
Use blocks under short leg - correct pelvic tilt / scoliosis - correct knee flexion	Xiphisternum to medial malleolus   No correction for contractures - hip / knee / foot - coronal and sagittal plane	ASIS to medial malleolus   Correct for contractures in coronal and sagittal plane - hip: exclude hip adduction or abduction contractures - hip: compensate for hip FFD with pillow under other hip - knee: compensate for knee FFD with pillow under other knee
Measure desired correction



Identify site of shortening



Long right femur



Galeazzi

- hips and knees flexed side by side

- look for tibial / femoral shortening

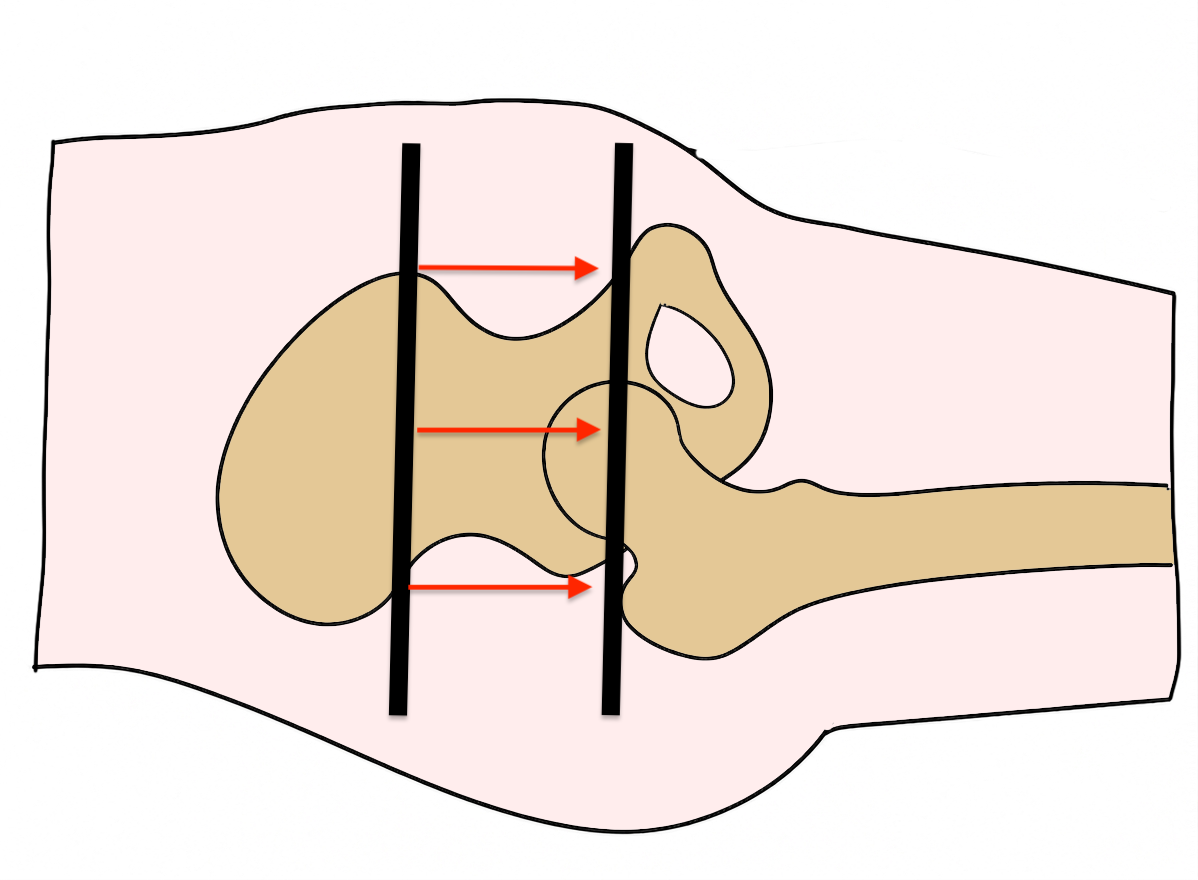

Bryant's triangle

- detects shortened femur above greater trochanter in hip

- distance between lines perpendicular to GT and ASIS

- compare each side



Examine knee



Conditions such as fibula hemimelia associated with ACL deficiency

Can cause issues with femoral lengthening procedures



Four outcomes



Symmetrical Stance Level Pelvis	Symmetrical Stance Oblique Pelvis	Asymmetrical stance Level Pelvis	Asymmetrical stance Oblique pelvis
No LLD   Bilateral symmetrical deformity	Uncompensated LLD   Hip / knee / ankle normal position	Fully compensated LLD   Flexed hip Flexed knee Equinus ankle	Partially compensated LLD   Partly flexed hip / knee / ankle

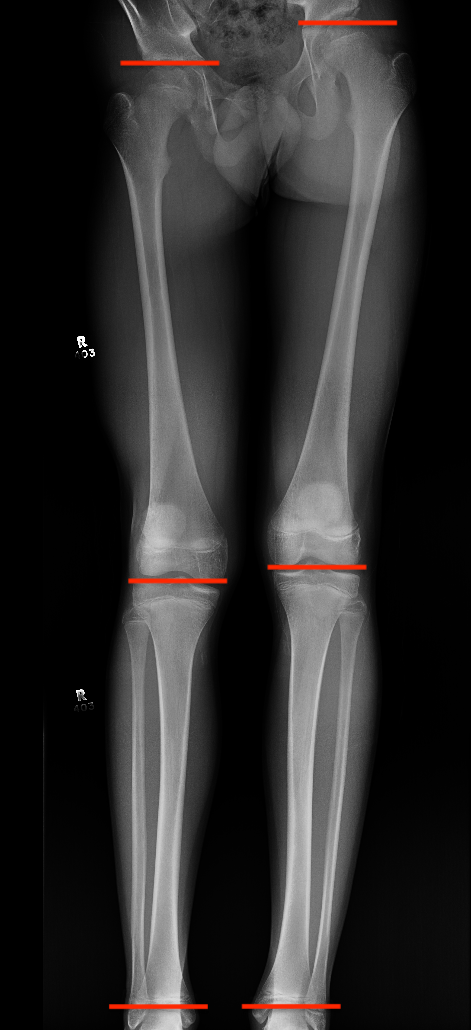

X-ray



Teleroentgenogram	Orthoroentgengram	Scanogram
Single exposure Single film	Multiple exposures hip / knee / ankle Single film	Multiple exposures hip / knee / ankle Separate film hip / knee / ankle
Parallex error	Parallex error







Skeletal Age





 Greulich-Pyle atlas using PA xray of the left hand

- estimate skeletal age

- peak growth boys skeletal age 14

- peak growth girls skeletal age 12

- 2 years of growth after distal phalanges have fused



12 year old versus 14 year old hand xray.  Distal phalanges have fused in 14 year old.



Comprehensive guide to skeletal age: www.radiologykey/skeletal-age



 Shapiro's development patterns of LLD



Shapiro et al JBJS Am 1982

- longitudinal study of 800 patients with LLD

- age versus LLD with varying causes

- 5 main patterns of LLD over time

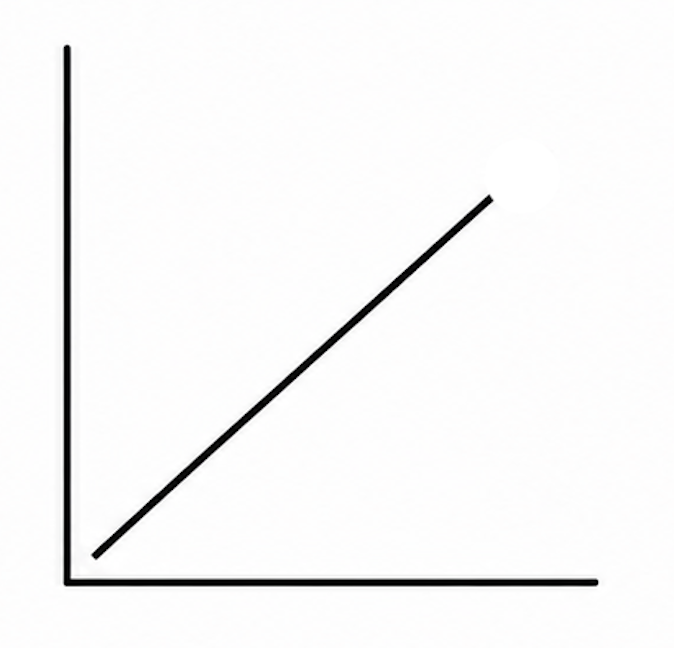

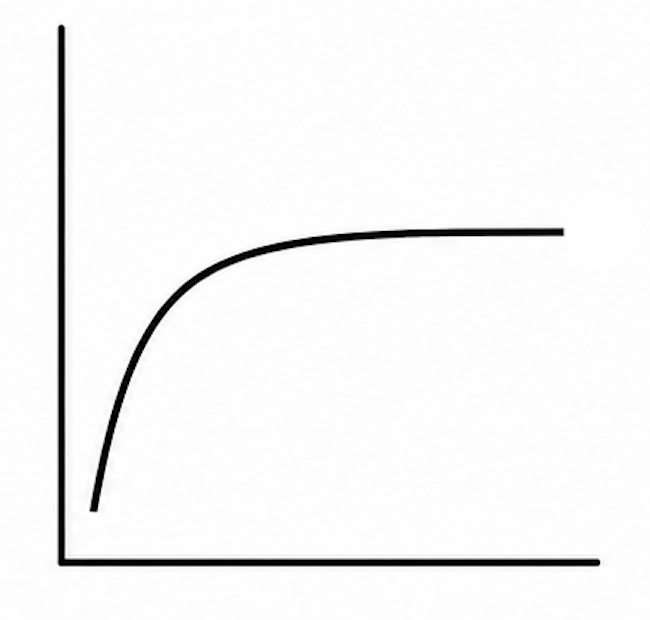

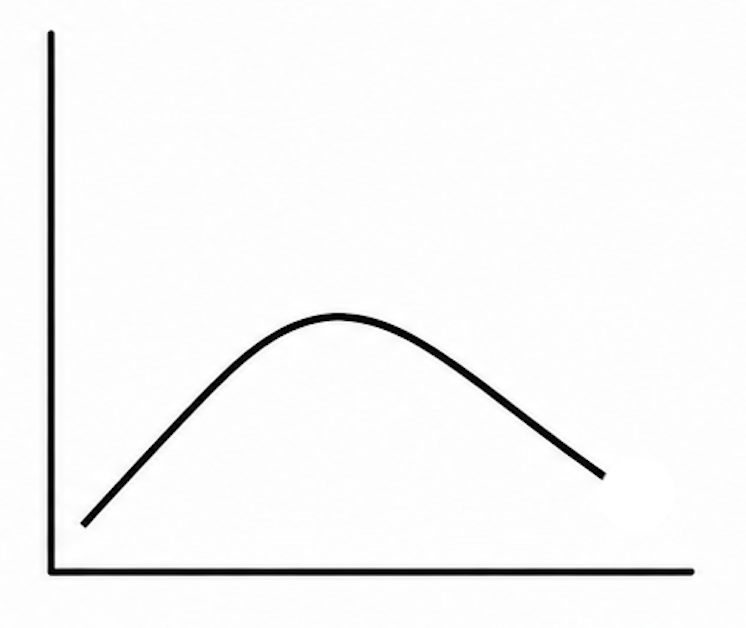

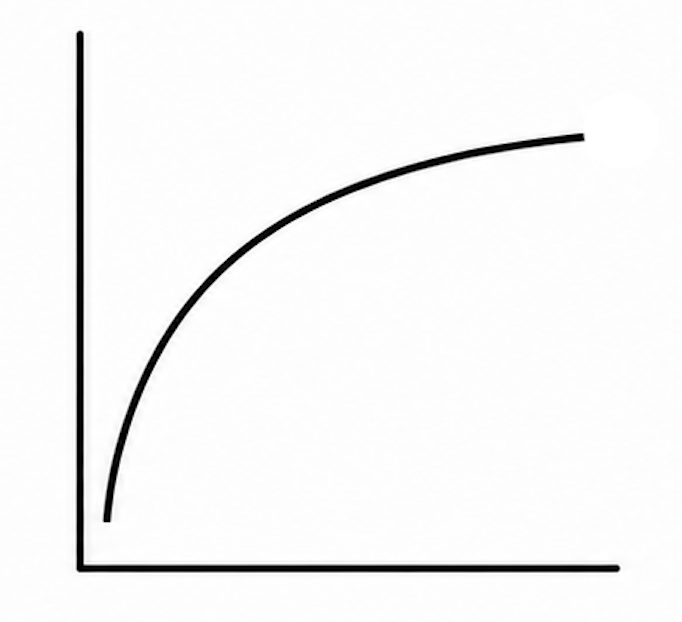

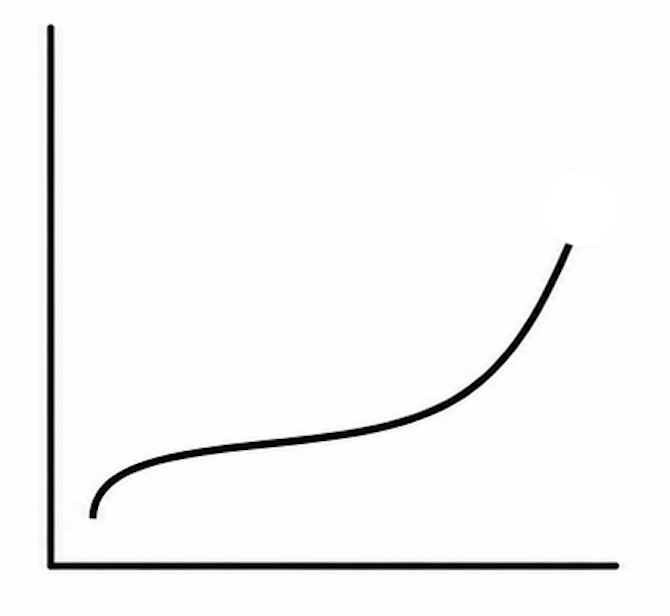

Type I	Type II	Type III	Type IV	Type V
PFFD Growth arrest	Polio Juvenile RA	Femoral fracture overgrowth	Hip pathology	Juvenile RA



Growth prediction



Concept

- predict LLD at maturity

- enables decision making on timing of eiphysiodesis



Menelaus Rule of Thumb

- girls stop growing at 14 / boys stop growing at 16

- distal femur 9 mm / year
- proximal femur 3 mm / year
- proximal tibia 6 mm / year
- distal tibia 3 mm / year



Green and Anderson growth remaining tables

- measured longitudinal growth in normal white children

- tibia and femur

- plotted average growth per year by skeletal age with standard deviations

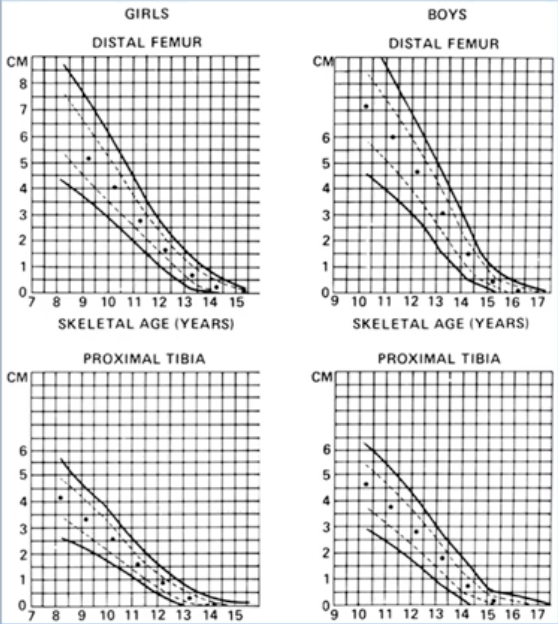

Green and Anderson growth remaining tables



Moseley straight line graph

- converted Green and Anderson table to straight line

- three measures: length long leg, length short leg, skeletal age

- plot measures over three time periods

- estimate LLD at skeletal maturity

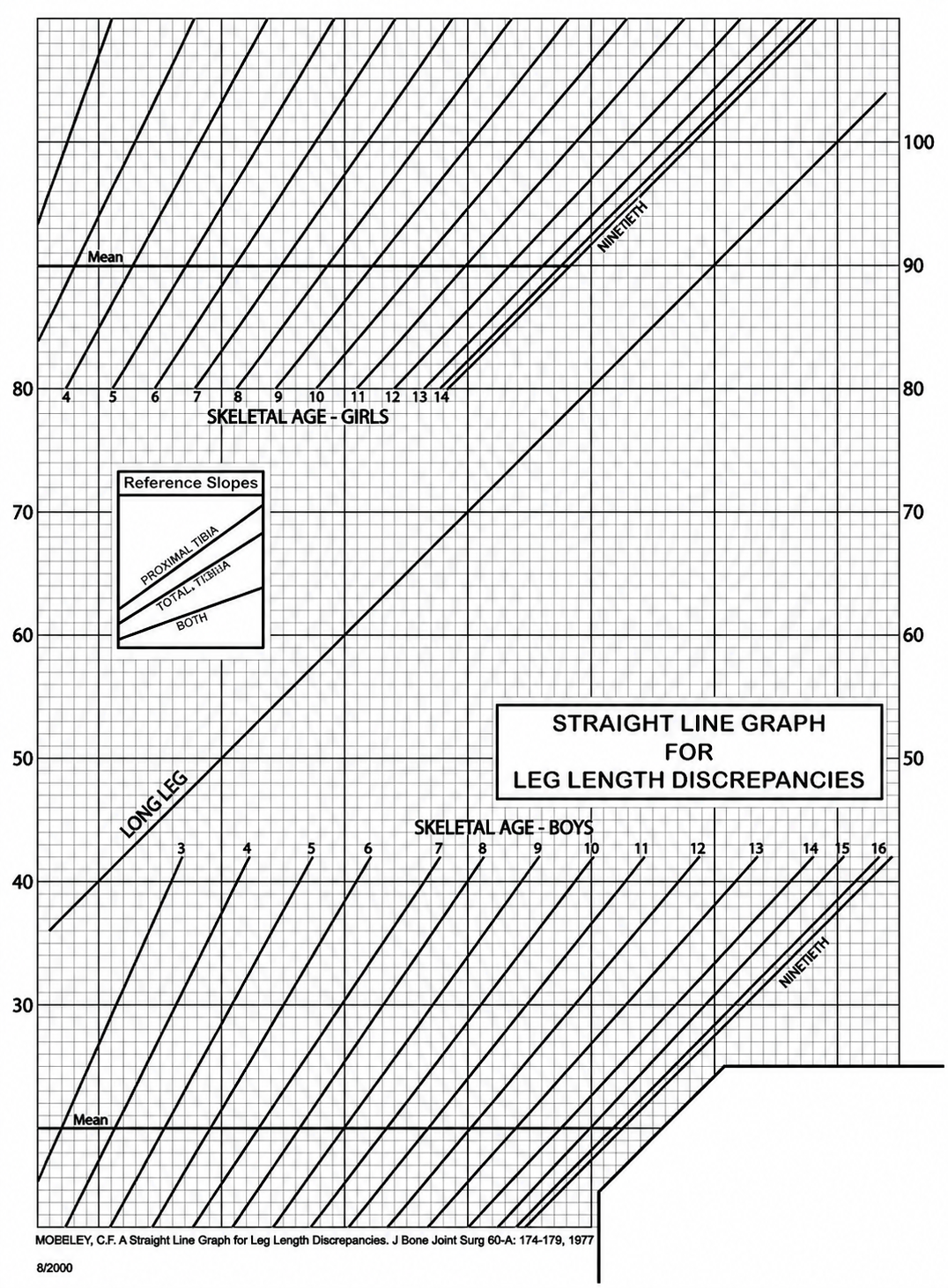

Moseley straight line graph



Paley multiplier method

- converted Green and Anderson table to a multiplier for tibia and femur over time
- use established multiplier for age and sex to determine LLD at maturity

- only works with Shapiro Type I LLD patterns

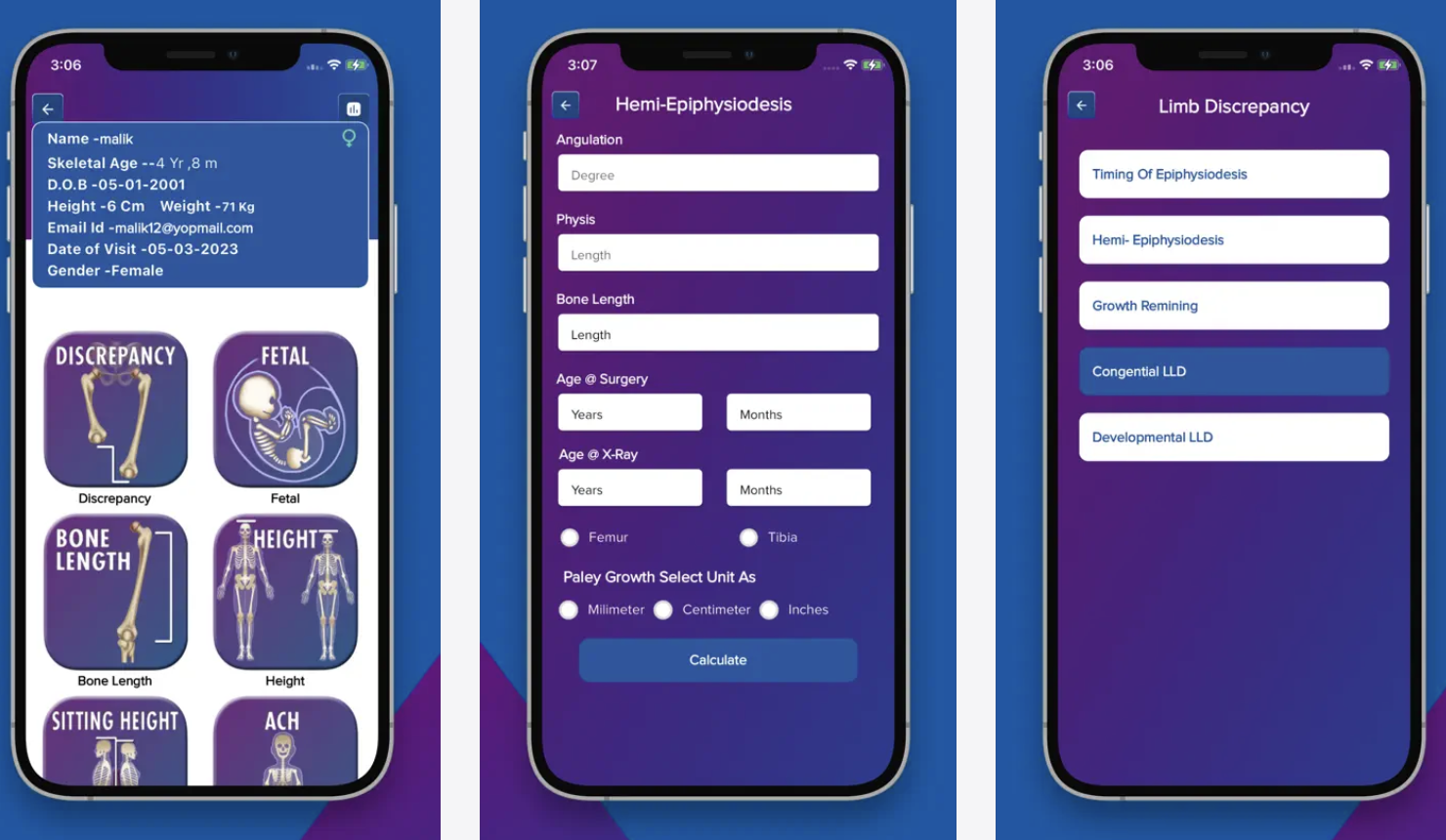

Paley growth multiplier app
