DRUJ Instability

Types



Dorsal

- most common

Volar



Causes

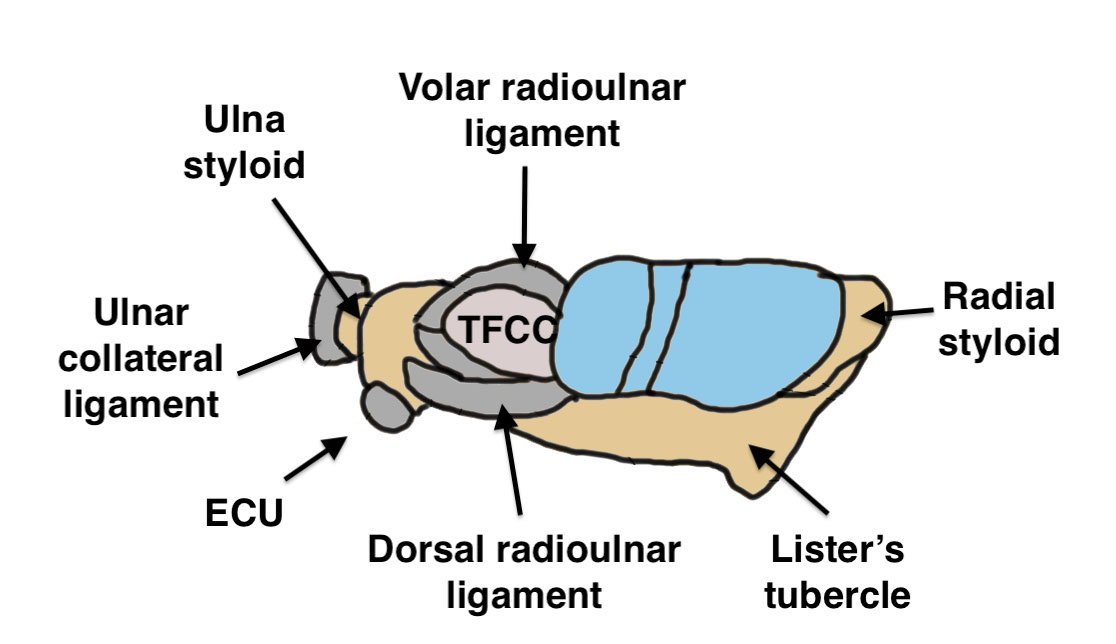

1.  Acute traumatic peripheral tear TFCC with DRUJ dislocation

- usually major trauma

- dorsal or volar



2A.  Distal radial fracture

- Galleazzi fracture

- sigmoid notch fracture



2B.  Radial Malunion



3.  Ulna styloid fracture



4.  Essex Lopresti

- fracture radial head with dislocation DRUJ



Diagnosis



Xray

- need true lateral

- ensure radial styloid overlies proximal scaphoid / lunate / triquetram



CT

- Axial view shows DRUJ incongruency



1A.  Dorsal Dislocation DRUJ



Mechanism

- hyperpronation

- tear of dorsal distal RUJ ligament

- with partial or complete TFCC tear



Clinically

- dorsal prominence

- forearm locked in pronation

- attempted supination painful



CT scan



Management



1.  Closed reduction

- maintain in supination 4/52



2.  Open reduction

- rarely needed

- failure closed reduction (ECU incarceration)

- chronically dislocated

- may require acute repair TFCC +/- K wires



TFCC Repair + K wire



1B.  Volar Dislocation DRUJ



Mechanism

- forced supination

- usually complete tear TFCC



Clinically

- arm locked in supination



CT scan



Management

- closed reduction

- maintain in pronation 4 weeks

- rarely need open reduction or in chronic cases



2A.  Acute Distal radial fracture / Galleazzi



Incidence

- up to 60%



Treatment

- Anatomical reduction of radius

- usually makes DRUJ stable

- rarely need to repair TFCC / K wire for stability



2B. Radial malunion / Non anatomical ORIF



A. Short radial fracture

- lengthening radius difficult

- ulna shortening



B.  Angulation / rotation

- radial osteotomy

- TFCC repair

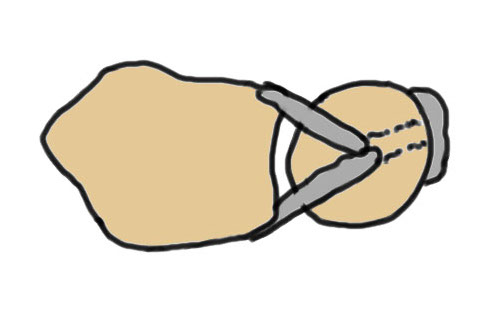

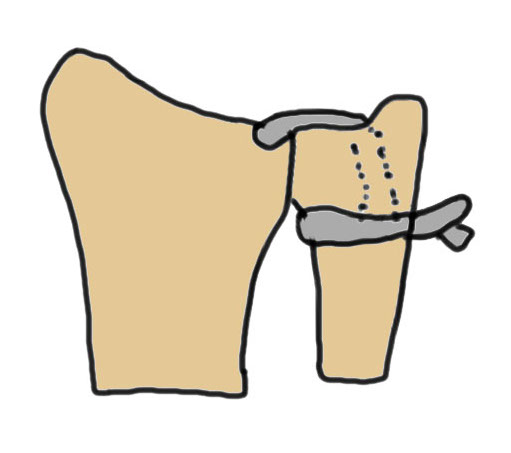

- +/- TFCC reconstruction with strip ECU



3.  Displaced ulna styloid



Classification



Type 1

- tip fracture

- stable DRUJ



Ulna Styloid Tip FractureUlna Styloid Tip Fracture



Type 2

- base fracture

- unstable DRUJ



Wrist Ulna Styloid Fracture



Management



POP immobilisation in neutral rotation and UD for 6/52

- ensure DRUJ remains located



Rarely need ulnar styloid ORIF if displaced and DRUJ unstable



4. Essex-Lopresti injury



Definition

- fracture radial head with dislocation DRUJ

- Essex-Lopresti variant - radial neck fracture with dislocation DRUJ



Type 1

- acute radial head fracture



Management

- reconstruct or replace radial head

- assess stability in supination

- occasionally need TFCC repair +/- K wire



Type 2

- late

- following excision of radial head with injury to interosseous membrane

- usually occurs within first two years following injury



Management



Nil degenerative changes

- ulna shortening with plate to reduce DRUJ

- radial head replacement to prevent recurrence



Degenerative changes

- Hemiresection / Darrach's / Kapandji
