Management

Non-Operative



Education regarding shoe wear

- extra wide / large toe box



Insoles

- longitudinal arch support

- pre MT dome for metatarsalgia

- podiatry to attend to callosities



Toe spacers



Analgesia



Operative



Indications



1.  Continued pain and discomfort

2.  Difficulties with shoe wear

- split size shoe requirements

- difficulty fitting shoes

- only 60% wear "fashionable" shoe post-op

3.  Deformity of lesser toes

4.  Skin problems

5.  Cosmetic appearance – relative indication



Contra-indications



Poor peripheral arterial circulation

Current sepsis

Uncontrolled diabetes

Peripheral neuropathy (relative)



Aims



1. Correction of the hallux valgus and intermetarsal angles

2. Creation of a congruent MTP joint

3. Sesamoid realignment

4. Removal of the medial eminence

5. Retention of functional range of motion of the MTPJ

6. Maintenance of normal weight bearing mechanics of foot



Surgical Options



Congruent



1. DMAA  < 15°

- treat hallux interphalangeus

- Akin with exostectomy



2. DMAA > 15°

- Chevron with closing wedge



Incongruent



Mild

- Chevron

- DSTP (Distal Soft Tissue Procedure) +/- proximal osteotomy



Moderate

- DSTP & proximal osteotomy

- Scarf



Severe

- DSTP & proximal osteotomy

- arthrodesis



Rheumatoid



Mild to Moderate / Low demand

- arthroplasty



Severe

- arthrodesis



Hypermobile TMTJ

- fusion (Lapidus) & DSTP



Surgical Procedures



1.  Chevron



Hallux Valgus ChevronGreat Toe Chevron



Indications

- incongruent joint

- HVA < 30o / IMA < 15o

- patient < 60 years



Technique



Avoid lateral release = AVN 40%



Dorsomedial approach in internervous plane

- don't go directly medial as will get sensitive scar

- protect dorsal sensory nerve

- distally based "V" capsular flap

- expose MTP joint



Exostectomy

- remove medial eminence with saw

- leave 1- 2 mm medial to medial sulcus

- otherwise risk hallux varus

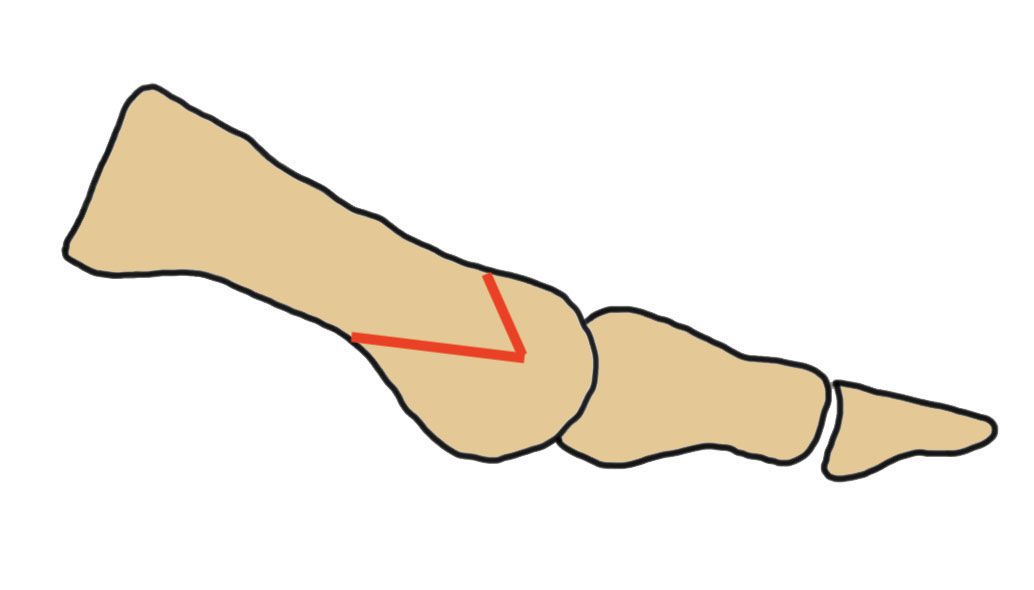

60° osteotomy apex distal

- longer plantar limb to avoid sesamoids and inferior joint surface

- apex 1 cm from articular surface

- translate 5mm

- 1mm displacement corrects IM angle 1º

- can perform medial closing wedge to correct DMMA



Fixation

- not always necessary

- sutures / k wire / screw



Closure

- imbricate capsule

- advance to tighten medially



Second toe releases as needed



Post op

- bandage / POP to maintain correction

- check wound at 1 week

- bunion boot / heel walk

- toe spacer

- 6/52



Hallux Valgus Toe Spacer



Results



GE 75% if IMA >12°

GE 95% if IMA <12°



Complications



AVN is rare

- ensure apex 8-10 mm from articular surface

- avoid DSTP



2.  Distal Soft Tissue Procedure



Hallux Valgus Pre DSTPHallux Valgus Post DSTP



Modified McBride

- release of tight lateral structures (ADDH, lateral capsule, transverse MT ligament)

- medial exostectomy (just medial to sagittal sulcus)

- medial capsular plication



(Modification: no longer excise sesamoid)



Indications

- mild HV with incongruent joint

- severe HV when combined with proximal osteotomy



Technique



1.  Dorsomedial approach

- protect nerve

- V shaped capsulotomy

- remove medial prominence

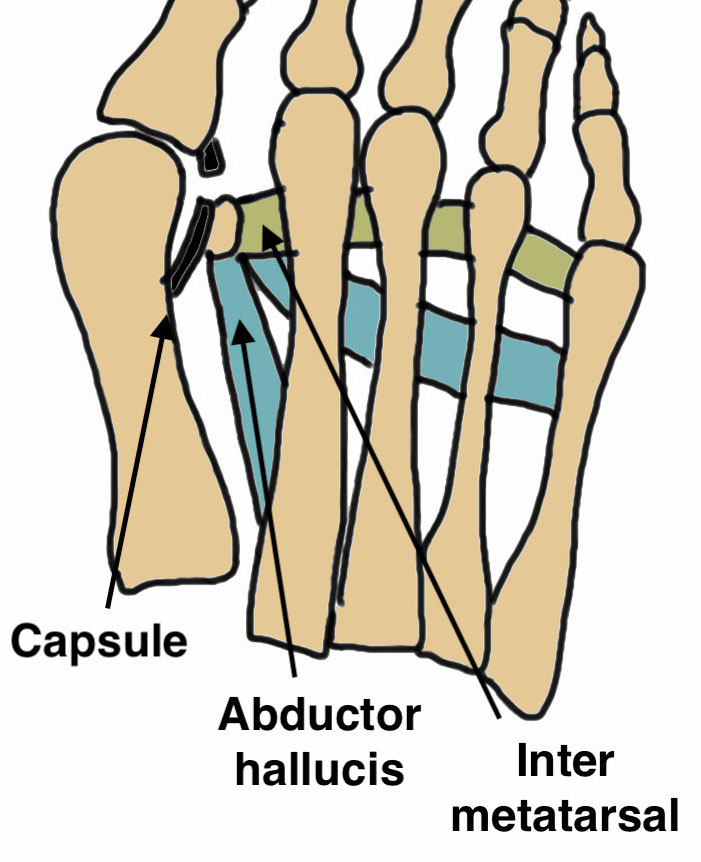

2.  Incision first web space

- protect branches of DPN

- insert lamina spreader

- release ADD hallucis at P1

- cut capsule between sesamoid and MT

- divide transverse MT ligament



Results



92% good results



Complications



Nerve injury

- plantar cutaneous nerve



Hallux varus

- from releasing lateral FHB from sesamoid



3.  Proximal Osteotomy + DSTP



Indications

- severe HV

- correct IMA with osteotomy

- correct HVA with DSTP



Results

- in combination with DSTP

- GE 90 %



Options

- crescentertic

- opening wedge (lengthens)

- closing wedge (shortens)



Opening wedge

- extend medial incision

- incomplete ostetomy with saw at base MT

- use bone from bunionectomy to fill gap

- fixation with small plate



4.  Scarf



Indications

- moderate HV

- see separate technique

- technically challenging but good results

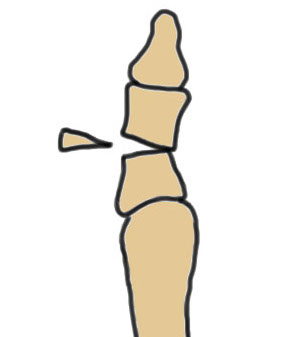

5.  Akin



Indications

- congruent joint

- DMAA < 15o

- hallux interphalangeus > 10o

- residual HV after other procedures



Technique

- medial closing wedge osteotomy of P1

- combine with cheilectomy



6.  Keller Procedure



Technique

- resection 1/3 of proximal phalanx

- should use pin to stop cock up deformity & to stiffen joint



Indications

- housebound / non ambulator

- elderly

- salvage

- marginal circulation - DM / PVD

- hallux rigidus if cheilectomy or arthrodesis contra-indicated



Complications

- instability / cock up deformity

- transfer metatarsalgia (in young)



Results

- 80% good results



7.  Arthrodesis



Indications

- hallux valgus with arthritis

- severe hallux valgus

- neuromuscular disease i.e. cerebral palsy

- RA

- salvage procedure for failed procedures



Position

- 15º valgus

- DF 10º relative to plantar aspect of foot

- DF 30° relative to ray



Technique

- dorsomedial approach

- release EHB / mobilise EHL / release collaterals

- Coughlin male and female reamers

- secure with cross screws or plate



Hallux Valgus Arthrodesis



8. Lapidus Procedure



Hallux Valgus SevereHallux Valgus Proximal Osteotomy and Lapidus



Indications

- TMTJ hypermobility

- fusion TMTJ



Problems

- difficult to achieve union

- difficult to get position correct



Joint multiplanar

- malrotation poorly tolerated

- shortens medial column

- can get metatarsalgia



Technique

- slight plantar flexion and lateral deviation



Lapidus APLapidus Lateral



Complications of Surgery



Transfer Metatarsalgia



Recurrence

- incorrect surgery

- poorly performed surgery

- high risk groups i.e. adolescent



Nerve injury

- dorsal and plantar cutaneous nerve



Cock up Toe



Cause

- post Keller’s



Management



Arthrodesis MP joint

- shorten if don't use graft

- fusion rate 95% (BG) vs 70% (no BG)



Hallux Varus



Cause

- excessive medial resection

- resection of fibular sesamoid

- excessive lateral release or medial plication



Clinical

- not always painful

- cosmetically unacceptable

- difficulties with shoe wear

- cockup deformity

- with time stiffens in extension & medial deviation



Options

- soft, well fitting shoe

- arthrodesis

- soft tissue reconstruction



EHL Reconstruction

- lateral two thirds of the tendon removed from its insertion

- detached distally, passed under transverse ligament

- inserted into proximal phalanx



AVN



Rarely seen in Chevron

- due to disruption of volar blood supply



Great Toe AVN Post Chevron



Management

- arthrodesis / excise avascular fragment and shorten toe
