Tarsal Coalition

Definition



Congenital fibrous, cartilaginous or bony connection of 2 or more tarsal bones

- due to failure of segmentation



Peroneal Spastic Flat Foot

- tarsal coalition

- tarsal pain

- reduced STJ motion

- rigid pes planus

- peroneal muscle spasm / tightness



Epidemiology



Present in 6% of population

- symptomatic in 1% of population



Bilateral in 50%



20% multiple coalitions



AD with variable penetrance



Calcaneo-Navicular most common (2/3)

- talocalcaneal middle facet is next most common (1/3)

- rest uncommon



Associations



Symphalangism (congenital end to end fusion of phalanges)

PFFD

Fibula hemimelia

Other gross limb anomalies



Aetiology



Secondary to failure of differentiation & segmentation of mesenchyme

- supported by intertarsal bridges in fetal tissue



Pathology



Multiple coalitions may occur

- do 2 plane CT with fine cuts to look for other coalitions

- will get poor results if not addressed



May develop ball and socket ankle joint

- due to stiffness of STJ

- develop inversion / eversion in AKJ



Valgus deformity leads to adaptive shortening of peroneal tendons

- may cause reflex spasm of tendon



Classification



1. Location

- CN / TC / TN / CC



2. Ossification

- synostosis - completely ossified

- synchondrosis - partly cartilaginous

- syndesmosis - fibrous



NHx



Majority are asymptomatic & remain so in adulthood



If symptomatic, symptoms usually develop in adolescence when bar ossifies

- due to reduction in STJ movement & joint stress



Calcaneonavicular coalition

- 8 - 12 years of age



Talocalcaneal coalition

- 12 - 16 years of age



History



Present with

- recurrent ankle sprains

- pain over sinus tarsi or over sustentaculum tarsi

- vague aching pain aggravated by activity



Signs



Stiff STJ

- especially talocalcaneal bar

- may still have movement if not ossified



Fixed Pes Planus

- doesn't correct on heel raise or Jack's Test

- heel doesn't swing into varus

- valgus heel with talocalcaneal bar



Peroneal tendons may be shortened but rarely spastic



X-ray

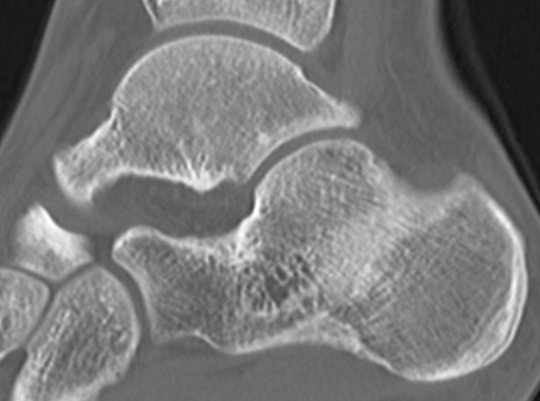

Calcaneonavicular



Oblique xray

- often diagnoses CN bar

- Anteater sign - elongated process on calcaneus or prolongation of navicular



Talocalcaneal

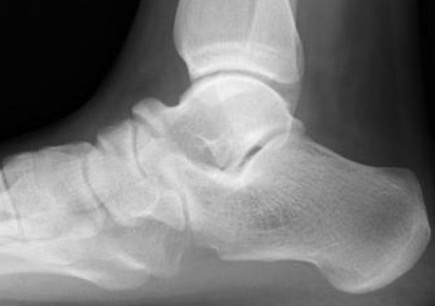

1.  Talar Beaking

- very suggestive of TC bar

- traction spur due to increased stress



Talar Beaking



2.  C sign

- seen on lateral xray

- continuous C shaped line

- from talus to sustenaculum tali



3.  Ball and socket ankle joint

- secondary to TC bar



4.  Harris axial view

- visualise talocalcaneal

- 40° axial view shows middle facet

- ski jump view



MRI



May be helpful for cartilaginous or fibrous bar

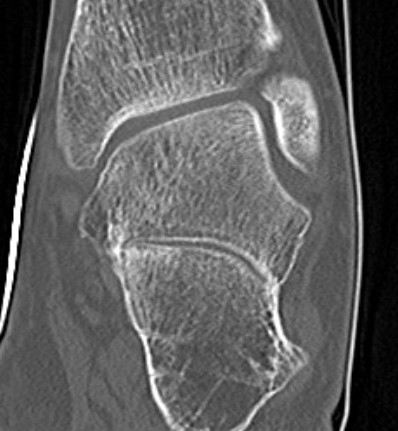

CT scan



Very good for bony bars



DDx



Any condition that injures STJ

- traumatic / osteochondral fracture

- inflammatory / RA

- tumour / osteoid osteoma

- infection



Flexible flat foot



Management



Non-operative



Options



Avoid aggravating activities

Moulded longitudinal arch support

SL FWB cast for 6/52

NSAIDS



Operative



Indications



Persistent pain

Minimal degenerative changes



Options



Resection of bar

Isolated STJ fusion - degeneration of STJ only

Triple Arthrodesis - rigid planovalgus foot



Criteria for Resection



All relative

- young < 14 years

- absence of complete bony bar

- no degenerative changes

- presence of talar beaking is not a contraindication

- no fixed deformity



Calcaneonavicular bar resection



NHx compared with talo-calcaneal bar

- possibly settle down long term

- better prognosis / less arthritis / present younger

- more likely amenable to resection

- most do well



Technique



Aim is 1 cm gap



Ollier approach

- 1cm distal to fibular tip

- obliquely across sinus tarsi

- to superolateral margin TNJ



Superficial Dissection

- protect superficial CPN

- EDL & P tertius anteriorly / peroneals plantarward



Deep dissection

- elevate EDB proximal to distal

- beware of its motor branch from DPN

- show sinus tarsi / anterior process calcaneum

- expose bar

- may need to open TN and CC joints to know exact location



Resection

- resect 1cm of bone with osteotomes

- protect talus and STJ from damage

- check with on table oblique lateral II

- suture fat / EDB into defect / over button and felt pad



Post op

- 2 weeks POP

- moon boot / WBAT /ROM

- button out at 6/52



Results



Gonzalez et al JBJS Am 1990

- 75 feet in 48 patients

- good or excellent results in 77%

- poor in 7%

- best results with cartilaginous coalition and patients < 16



Mubarak et al J Pediatr Orthop 2009

- CN resection and fat graft interposition

- 5% incidence of symptomatic regrowth requiring repeat resection

- 74% had improvement of subtalar joint motion

- 82% improvement of plantarflexion

- felt fat graft better choice than EDB as can completely fill gap



Talocalcaneal Bar



NHx



1/3 develop arthritis

- operative results not as successful as CN

- resection more difficult

- results less predictable

- tend to be more conservative with this than CN bar



Prognosis



Favourable

- < 16 years

- < 50% surface area of posterior facet

- nil arthritic changes

- < 16o valgus



Poor

- > 50% of post facet

- i.e. middle facet bar is > 50% of posterior facet

- heel valgus > 16°

- narrowing of STJ i.e. arthritic changes

- lateral talar process impinging on calcaneum



Options



Resection

- is best option if failed non-operative

- always worth trying prior to arthrodesis

- try to return some STJ motion



Calcaneal Osteotomy

- re-centres heel

- realigns weight bearing

- not everyone uses it



Arthrodesis

- in mature foot > 12 years



Resection Technique



Incision

- curved incision

- navicular tuberosity to medial border T Achilles

- 2cm superior to superior calcaneal tuberosity



Superficial dissection

- through flexor retinacular sheath

- elevate T Post and FDL tendon anteriorly

- neurovascular bundle and FHL retracted plantarward

- identify posterior facet



Resection

- resection of bone until middle facet seen + mobile

- remove more bone from talus than sustentacular side

- 2/3 of resection from talus

- key to operation is anterior process of calcaneus & follow posterior

- fat graft or silicon insertion



Post operative

- early ROM important



Talonavicular



Very rare

- ossifies at 3-5 years

- therefore symptoms early
