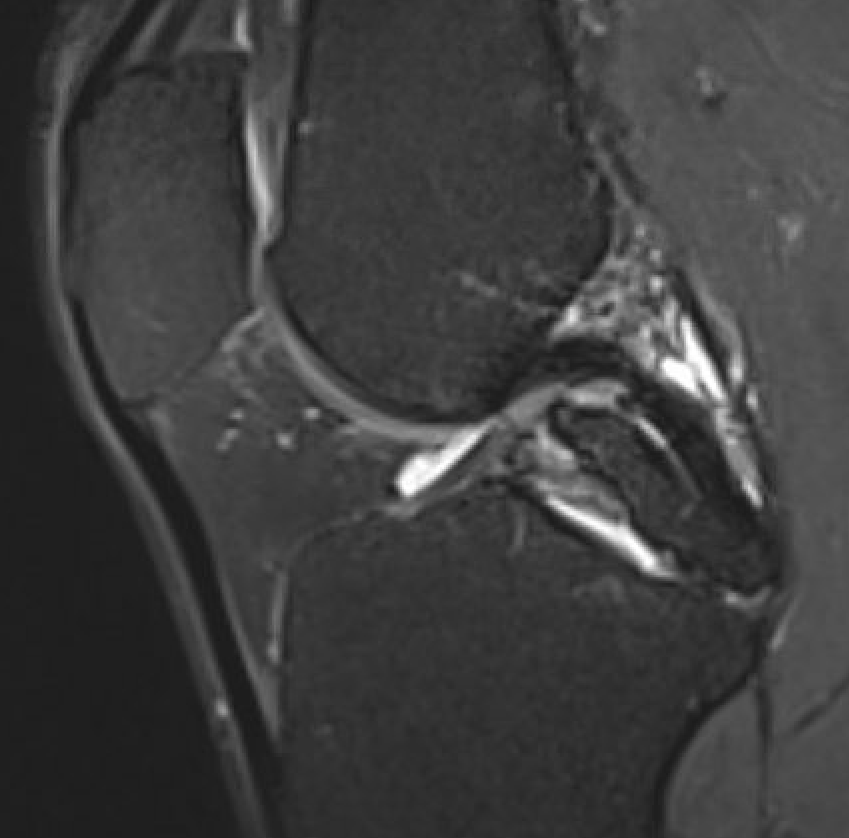

PCL MRIPCL Arthroscopy







- 2 x strong as ACL



- about the same as ACL

- 38 mm


Cross sectional area

- 150% of ACL

- 13 mm diameter


2 Bundles


PCL Arthroscopy


1.  Anterolateral

- most important

- double the size of the posteromedial

- tight in flexion

- try to reconstruct this bundle


2.  Posteromedial

- tight in extension


Femoral insertion


Half moon

- anterolateral aspect MFC

- much more anterior than the origin of ACL

- inserts 5mm posterior to articular margin of MFC

- midpoint is 1 cm posterior to articular margin of MFC

- 1 or 11 o'clock


Radiographic anatomy of femoral PCL insertion


Tibial insertion


PCL facet

- 1 cm below joint line


Radiographic anatomy of the tibial insertion of PCL insertion


Menisco-femoral ligaments


Both insert onto femur with PCL

Originate from posterior horn lateral meniscus

At least one present in > half of all knees



- <1/3 diameter of PCL

- anterior


Wrisberg Ligament

- half the diameter of the PCL

- posterior to the PCL


LIgament Wrisberg

Ligament of Wrisberg MRI

Arterial supply


Middle genicular artery


Nerve Supply


Tibial nerve




Primary restraint to posterior tibial translation

- secondary restraints are posterolateral corner

- posterior translation increased even further if PLC and PCL deficient


Secondary restraint to ER and varus



10x less common ACL




Direct trauma

- posteriorly directed force on flexed knee

- dashboard injury



- forced knee hyper-extension


Associated Injuries


Multi-ligament knee injury

- posterolateral corner

- posteromedial corner





Injury often unremarkable

- knee doesn't feel right

- don't feel pop or tear

- posterior knee pain


May complain of difficulties walking down stairs in chronic situation




Excessive Recurvatum


PCL Deficient Recurvatum


Positive Lachman's


Will be positive with both ACL and PCL


Posterior sag

- place knee at 90 degrees

- tibia will sag posteriorly

- loss of tibial step off (normal 1cm)


PCL Posterior Sag


Posterior drawer


Restore step off first (tibia 1 cm anterior to femur) then push tibia back

- Grade 1: < 5mm

- Grade 2: 5 - 10mm

- Grade 3: > 10mm


PCL Deficient Lachmans 2PCL Deficient Lachmans 1


Quadriceps Active Test

- patients contracts quadriceps with foot stabilised

- the tibia is reduced anteriorly from its subluxed position by the quadriceps


Exclude Associated Ligament injury


PLC instability


1.  Posterolateral draw with foot ER


2.  Dial test

- patient prone, external rotation

- > 10 - 15o  compared with other side abnormal

- asymmetry 30o posterolateral corner only

- asymmetry 30 and 90o, PCL and posterolateral corner


Dial Test




Bony Avulsion

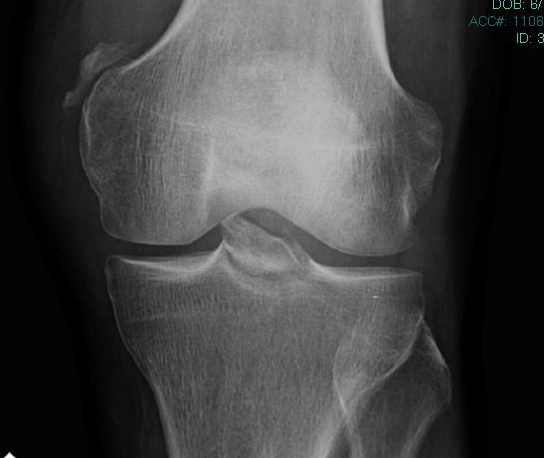

PCL AvulsionPCL bony avulsion


Posterior subluxation of tibia


Posterior tibial subluxation xray

Grade 3 PCL disruption - posterior tibia subluxed behind posterior aspect femoral condyles




CT PCL bony avulsion

Bony avulsion PCL




PCL completely torn

PCL completely torn

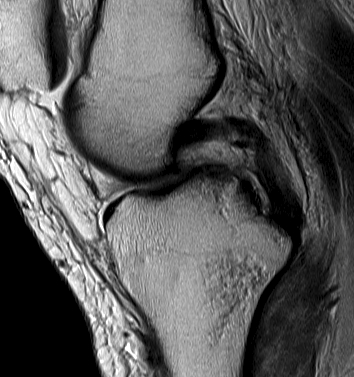

PCL Midsubstance tear with stretching

PCL midsubstance tear with lengthening

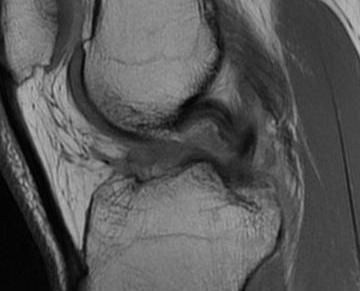

PCL Avulsion MRI

PCL tibial avulsion


PCL femoral avulsion MRI

PCL femoral avulsion




May miss tear as is extra-synovial


PCL Torn Arthroscopy 2PCL Tear Arthroscopy

Chronic PCL tear from femur


PCL femoral avulsion acutePCL femoral avulsion

Acute PCL femoral avulsion


PCL tear with ACL laxity 1ACL laxity due to PCL tear 2

Apparent ACL laxity due to PCL tear and posterior tibial sag; ACL tension restored with anterior drawer
