Burst Fractures

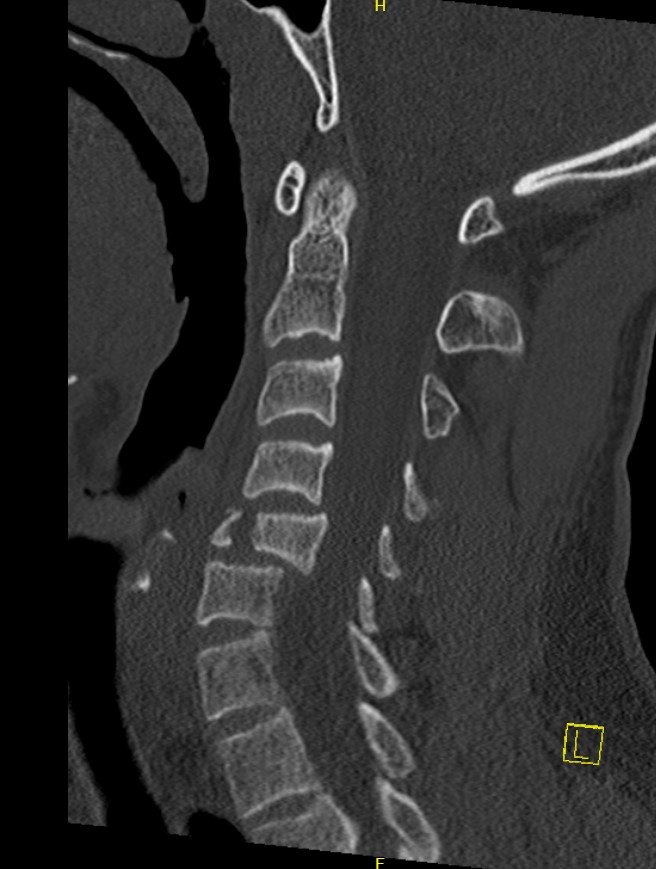

Cx burst 1Cx burst 2Cx burst



Definition



Injury to anterior and middle columns, with retropulsion +/- posterior column



Mechanism



Vertical compression



Epidemiology



10% cervical fractures

Most commonly C5/6



Pathology



Anterior & middle columns fail

- if severe, posterior ligament complex fails



Canal compromise / neurological injury

- retropulsed fragments

- typically one or two main retropulsed fragments



Neurology



More common than in upper cervical spine injuries



Clinical



Neck pain



Complete / incomplete cord lesion



American Spinal Injury Association (ASIA) Classification

- A (complete): no motor or sensory

- B (incomplete):  no motor, some sensory intact

- C (incomplete):  > 50% muscle groups strength < grade 3

- D (incomplete):  > 50% muscle groups strength > grade 3

- E (normal) motor and sensory



X-ray



AP

- widening between pedicles is hallmark on AP



Lateral

- > 50% anterior column loss of height

- loss of posterior vertebral height



CT

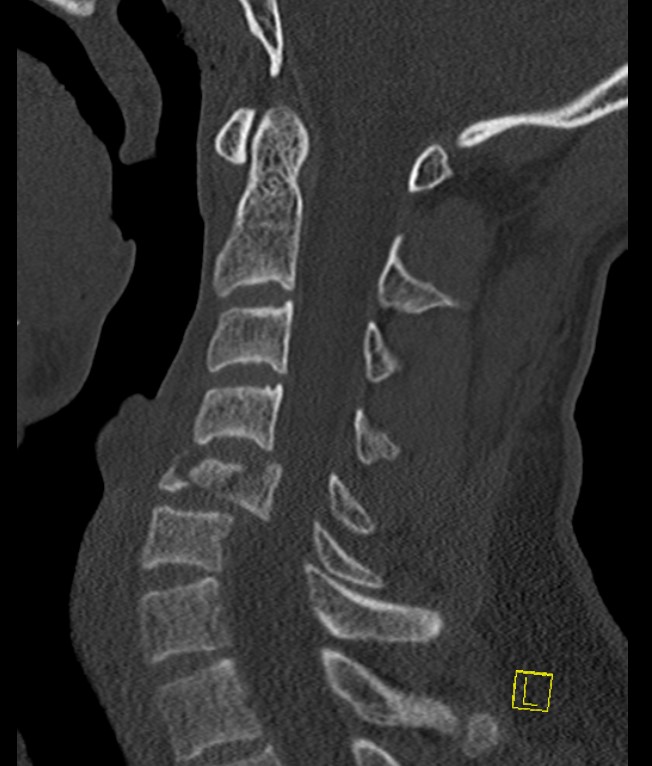

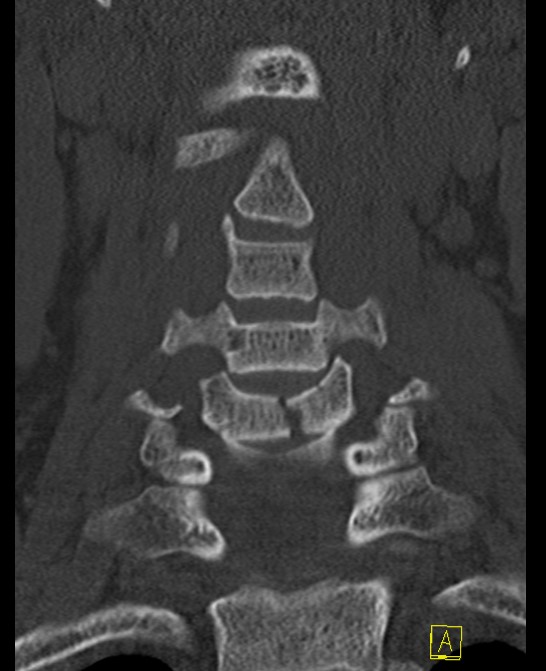

Cx burst sag CTCx burst coronal CTCx burst axial CT



MRI



Assess integrity of posterior column

Evaluate cord injury

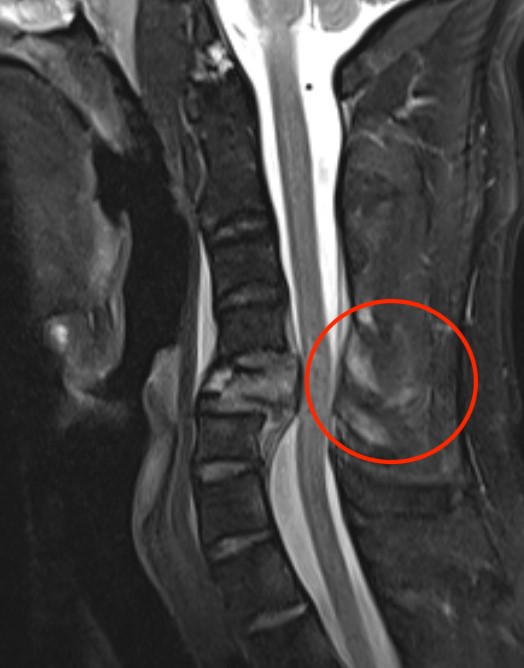

Cx burst MRI 1C burst MRI

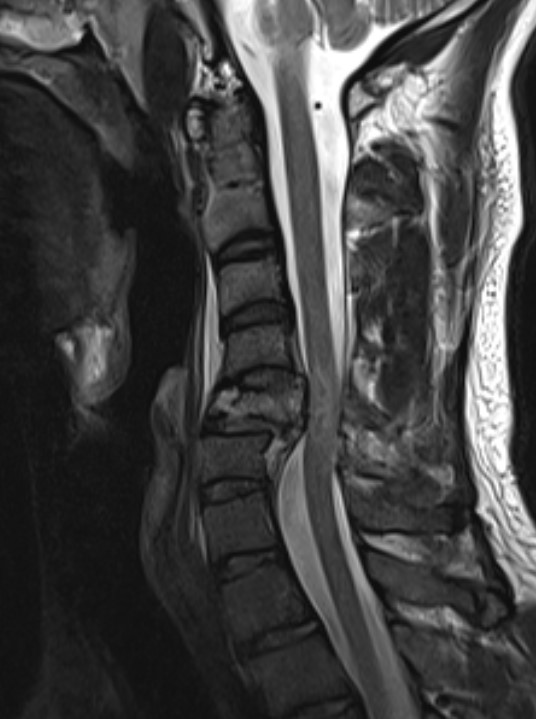

Cx burst MRI 2Cx burst MRI

MRI images demonstrating spinal cord injury and posterior ligamentous injury



Subaxial Injury Classification System / SLIC



Vaccaro et al Spine 2007

Injury Morphology   Discoligamentous complex   Neurological status
No abnormality 0 Intact 0 Intact 0
Compression 1 Indeterminate (MRI change only) 1 Root injury 1
Burst 2 Disrupted 2 Complete cord injury 2
Distraction / facet perch 3     Incomplete cord injury 3
Rotation / facet dislocation 4     Persistent cord compression +1



SLIC 1 - 3 - neurologically intact, non operative

SLIC 4 - equivocal

SLIC > 5 - surgery



Reliability



Spitnale CORR 2020 - variable inter- and intra-observer reliability in the literature



AOSpine subaxial cervical spine injury classification

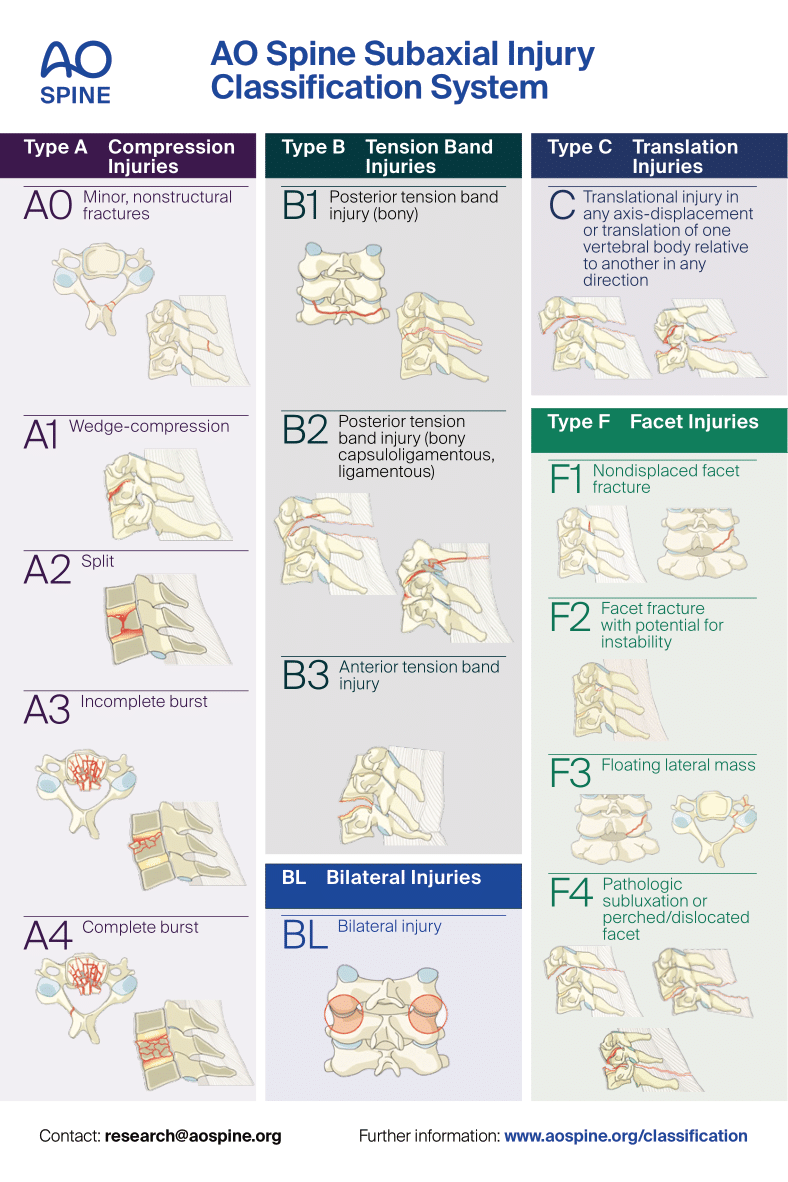

AOSpine Injury Classification



Neurological status:

N0 - neurologically intact

N1 - transient neurological deficit

N2 - radicular symptoms

N3 - incomplete spinal cord injuries

N4 - complete spinal cord injuries

NX - cannot be examined



Specific modifiers:

M1 - incomplete disruption of the posterior ligamentous complex

M2 - critical disk herniation

M3 - presence of comorbid spine conditions (osteoporosis, DISH, ossification of the PLL, AS)

M4 - vertebral artery injury



Reliability



Feuchtbaum et al Curr Rev Musculoskeletal Med 2016 - variable inter- and intra-observer reliability in the literature



Non operative Management



Indications



Wedge fractures

- < 50% height loss

- caused by flexion compression

- injury to anterior column only

Posterior column intact / nil instability / SLIC score 1 - 3

Minimal kyphosis

Nil neurology



Treatment



Collar for 6 weeks



Operative Management



Indications



Instability

Neurology

SLIC >5



Timing



Fehlings et al PLoS One 2012

- early (<24 hours) versus delayed (>24 hours) surgery

- 313 patients with acute cervical spinal cord injury

- improved neurological outcomes with decompression < 24 hours



Jug et al J Neurotrauma 2012

- surgical decompression < 8 hours versus 8-24 hours

- 42 patients with acute cervical spinal cord injury

- improvement of 2 ASIA grades in 46% patients treated < 8 hours

- improvement of 2 ASIA grades in 10% patients treated 8-24 hours



Steroids



Fehlings et al Global Spine J 2017

- evidence of modest improvements in motor functions with methylprednisone infusions within 8 hours



Technique



A. Anterior corpectomy & fusion with tricortical graft + plate

B. Anterior corpectomy & fusion with mesh cage + bone graft + plate



+/- Supplemental posterior fixation / cervical lateral mass screws



Cx burst ORIF 1Cx burst ORIF 2

Anterior corpectomy and tricortical graft



AO Surgery reference anterior cervical corpectomy

Vumedi anterior cervical corpectomy

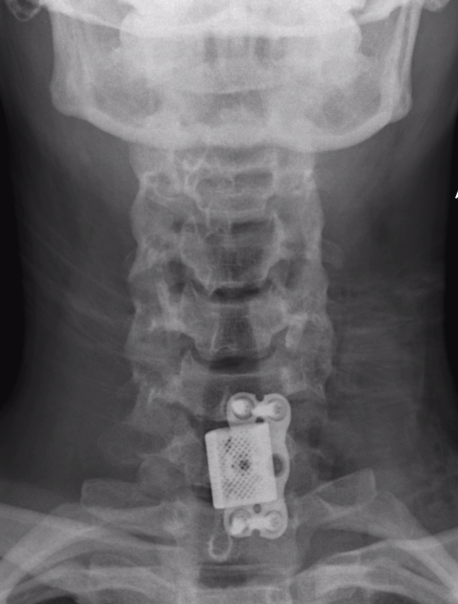

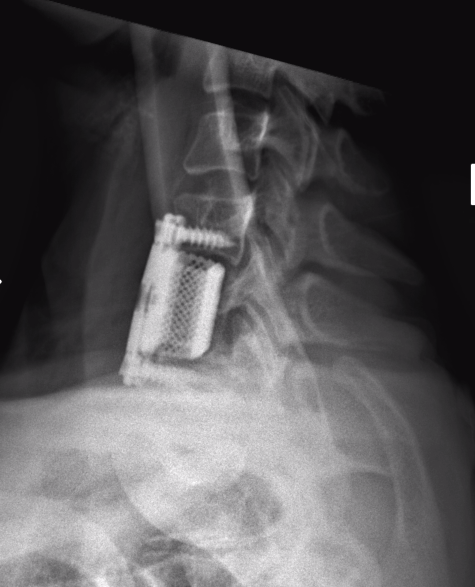

Cx Mesh cage 1Cervical mesh cage 2
