Humeral Shaft Fracture

Nonoperative Management



Indications



< 20o sagittal

< 30o coronal

< 3 cm of shortening



Undisplaced Humeral Fracture APUndisplaced Humeral Fracture Lateral



Options



1.  Vietnam Cast / hanging cast



2.  Functional bracing / Sarmiento

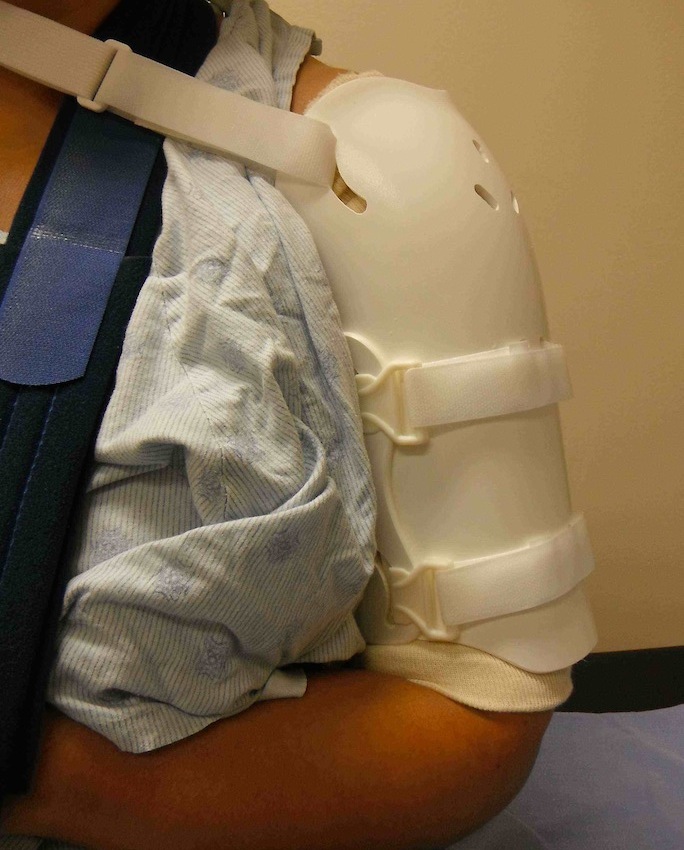

Functional Humerus Brace



Results



Union rates



Denard et al Orthopedics 2010

- non operative v operative treatment 213 fractures

- non operative: 20% nonunion and 12% malunion

- operative group: 8% nonunion and 1% malunion

- no difference in time to union in two groups



Ali et al. J Shoulder and Elbow Surgery 2015

- retrospective review of 138 patients treated nonoperatively

- 17% nonunion (24/138)

- proximal fractures highest nonunion rate



Time to union and functional outcome



Papasoulis et al. Injury 2010

- literature review of functional bracing humerus shaft fractures

- average time to union 10.7 weeks

- full shoulder ROM in 80%

- full elbow ROM in 85%

https://pubmed.ncbi.nlm.nih.gov/19523625/

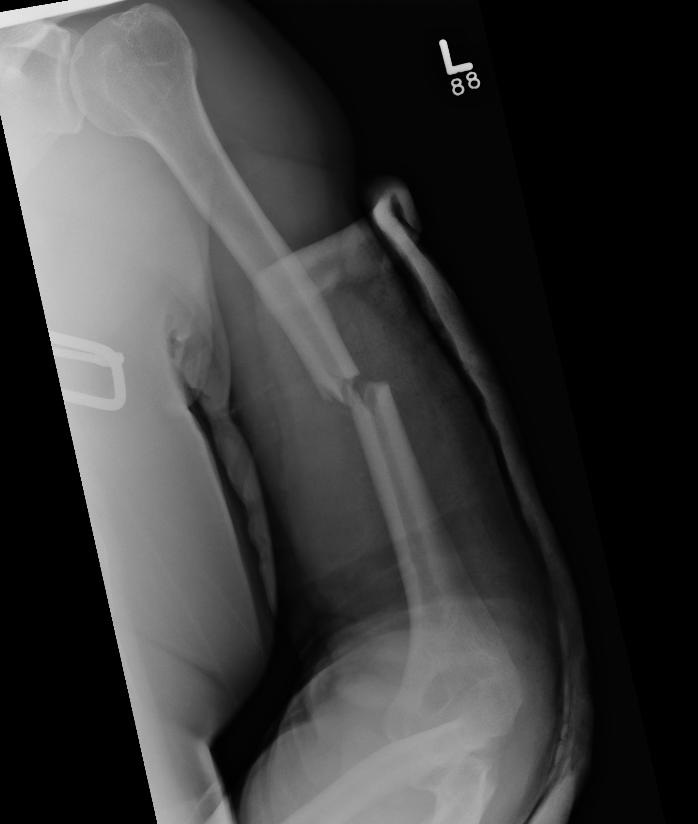

Humerus shaft 1Humerus shaft 2Humerus shaft 3Humerus shaft 4Humerus shaft 5

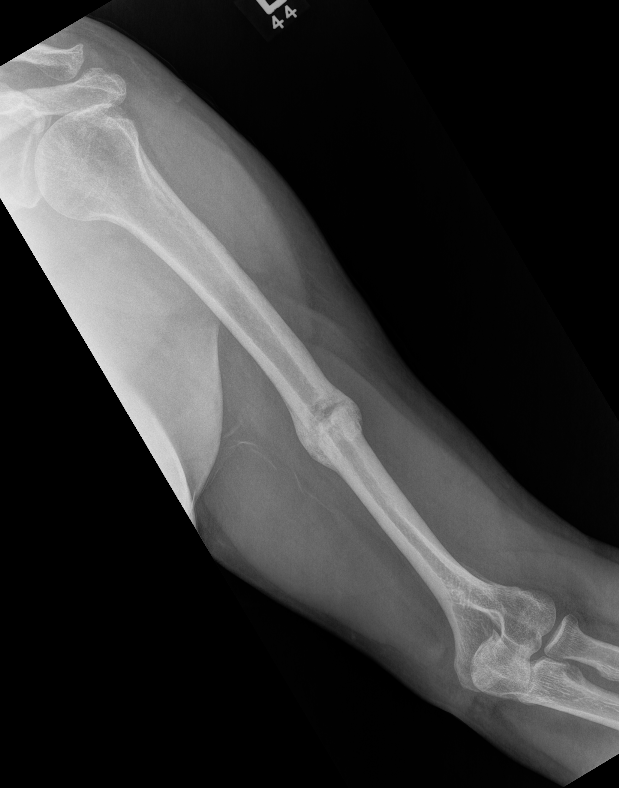

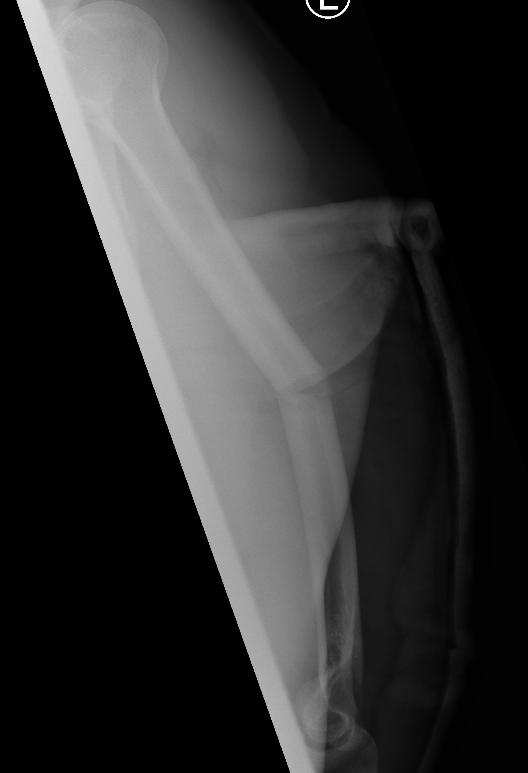

Progressive union in midshaft humerus fracture treated nonoperatively

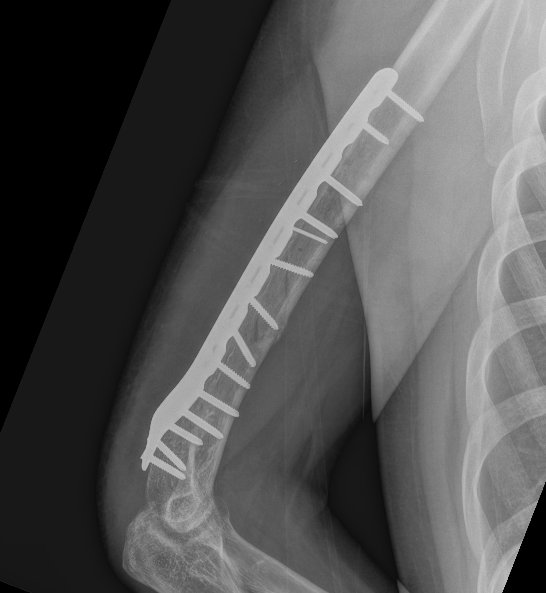

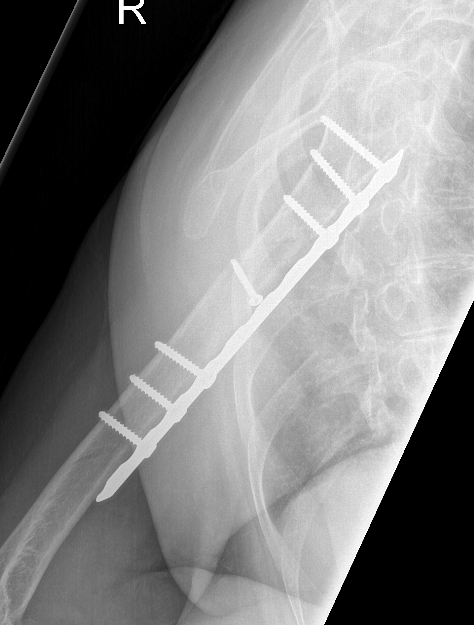

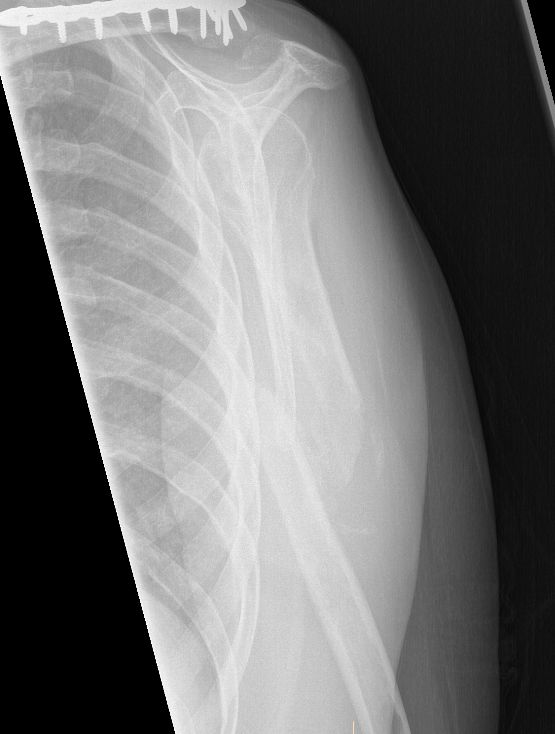

Humerus shaft nonunionHumerus nonunion

Nonunion in a proximal humerus shaft fracture treated nonoperatively



Radial Nerve Injury



Incidence



Shao et al. JBJS Br 2005

- systematic review of humerus shaft fracture

- 11.8% (532/4517) radial nerve injuries

- most common with middle, and middle/distal fractures

- 70% spontaneously recovered without intervention

- recovery rate 88% in those undergoing delayed exporation (14 weeks)

- recovery rate 88% in those undergoing immediate exploration



Holstein Lewis fracture

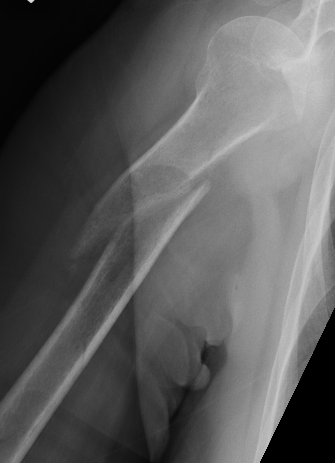

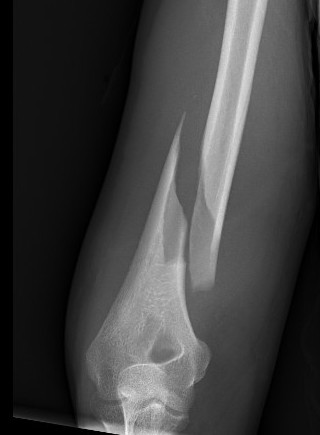

Holstein LewisHolstein Lewis fracture



Holstein-Lewis JBJS Am 1963

- series of 7 oblique distal third fractures with radial nerve injury

- all were treated operatively

- nerve in fracture gap in 2 / impaled in 1 / severed in 2 / contused +/- in callus in 2

- advised against attempted closed reduction

- risk of contusing nerve between fragments

- advised early open reduction through anterolateral approach

- the radial nerve is closely assoicated with the fracture site and the fracture spike



Korompilias et al. Injury 2013

- 25 patients with complete nerve palsy and humerus shaft fractures

- 13 fully recovered by 12 weeks

- explored 12 patients with no recovery at 16 weeks

- nerve lacerated in two patients

- intact in remainder - these fully recovered by 20 - 24 weeks



Management



Absolute indications for exploration

- open fractures

- radial nerve palsy following closed reduction



Relative

- Holstein-Lewis fracture patterns

- patient undergoing ORIF

- no recovery at 10 - 12 weeks



Expectant management

- wait 10 - 12 weeks

- if no recovery EMG

- consider exploration +/- neurolysis +/- nerve graft at that time

- if that fails, tendon transfer for radial nerve palsy



Operative Management of Humeral Shaft Fractures



Indications



Absolute



Compound fracture

Failure to obtain / maintain acceptable reduction

Radial nerve palsy post reduction

Displaced Holstein Lewis with radial nerve palsy

Nonunion



Relative



Multi-trauma

Floating elbow

Segmental fracture

Proximal fracture

Pathological fracture - won't heal

Bilateral humeral fractures

Obese (very difficult to splint)

Brachial plexus injury - allows early rehab

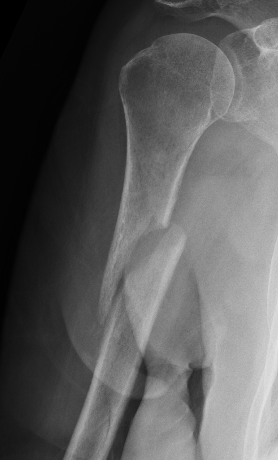

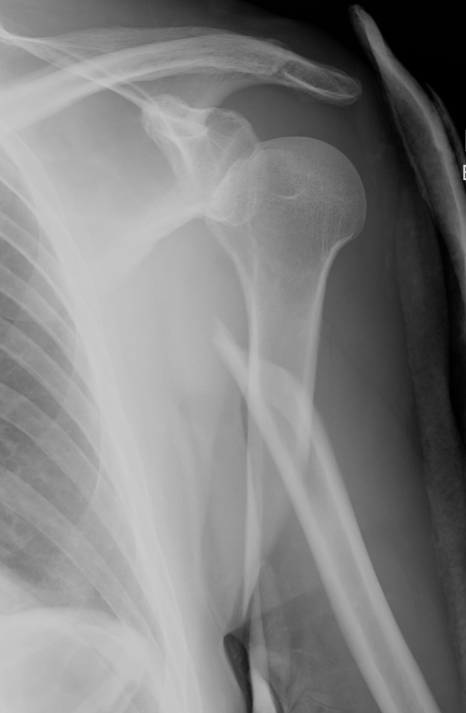

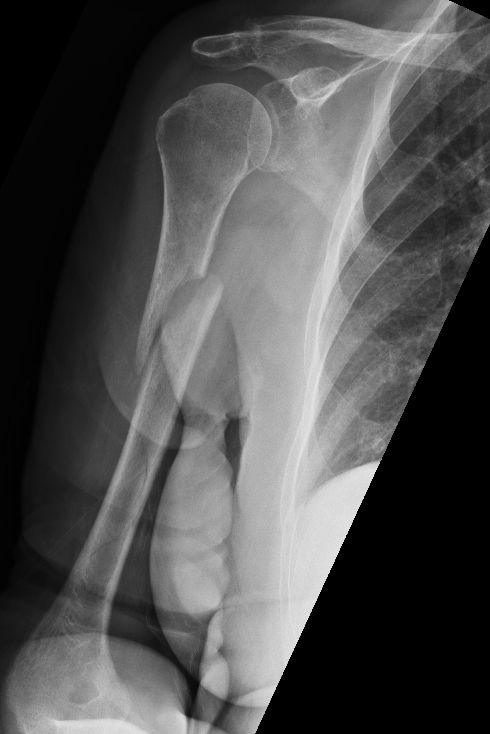

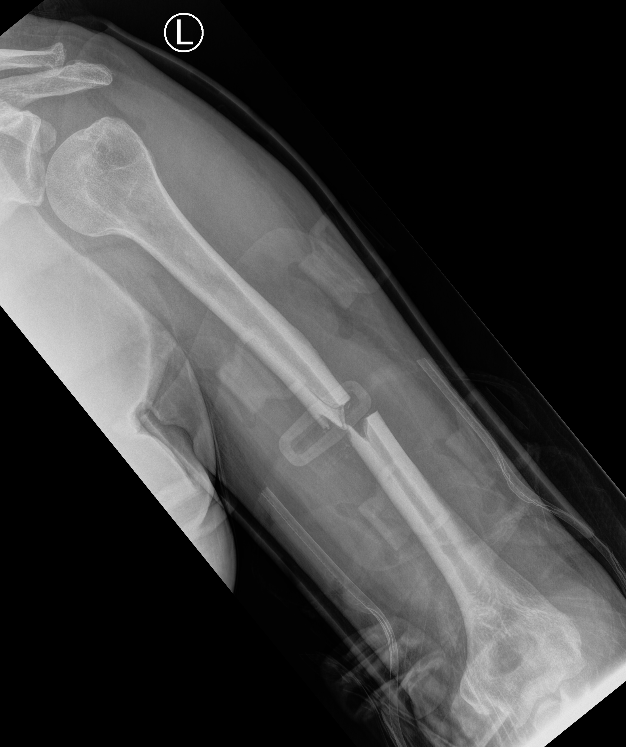

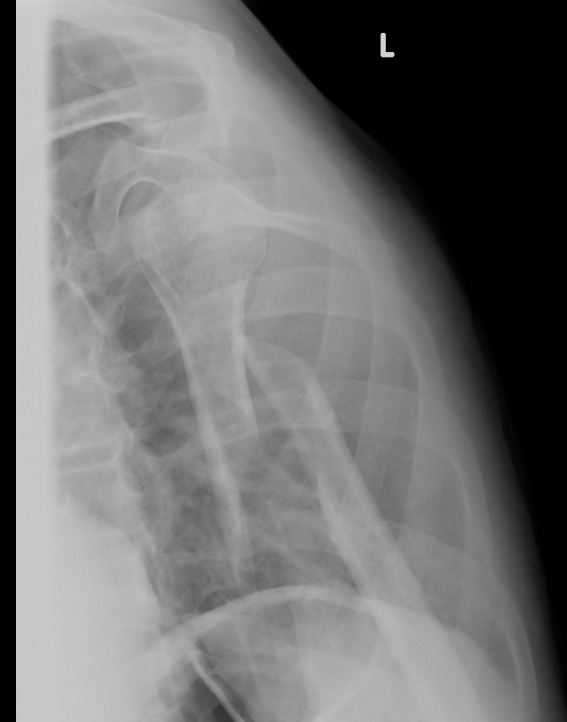

Humeral Fracture SegmentalDisplaced Humeral Fracture APDisplaced Humeral Fracture Lateral



Options



Open ORIF with plate

MIPO

Intra-medullary nail



Evidence



Nail v plate



Beeres et al. Eur J Trauma Emerg Surg 2021

- IM nail v open plate

- meta-analysis of 10 RCTs (500 pts)

- SR of 18 observational studies (4900 pts)

- 17% of IMN required reoperation for shoulder impingement

- IMN had faster union and lower infection rate

- no difference nonunion rates or shoulder function scores



van der Wall et al. Eur J Trauma Emerg Surg 2021

- IM nail v MIPO
- meta-analysis of 2 RCTs (87 pts)

- systematic review of 5 observational studies (600 patients)

- MIPO lower risk of nonunion and re-intervention

- MIPO better shoulder function



ORIF v MIPO


Beeres et al. Injury 2021

- MIPO v ORIF

- meta-analysis of 2 RCTS (98 pts)

- systematic review of 7 observational studies (263 patients)

- MIPO lower risk of nonunion

- no difference in infection or time to union



1.  Open ORIF with plate

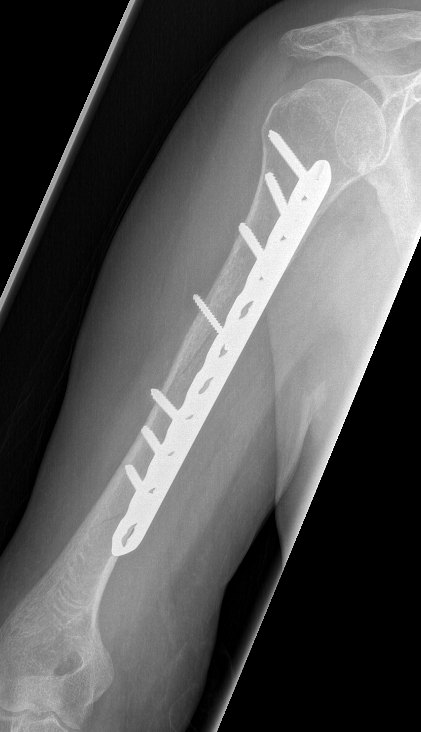

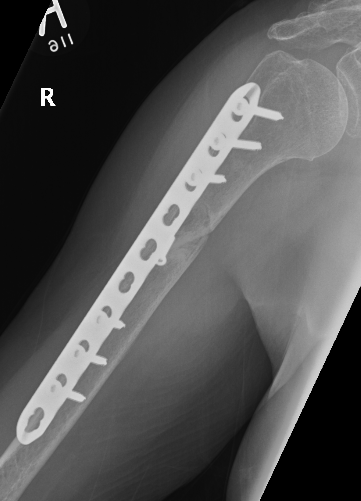

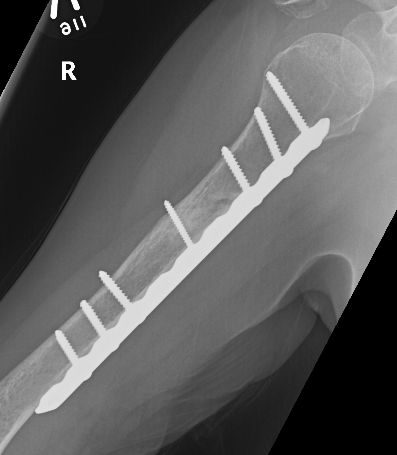

Humeral Plate LateralHumeral Plate Long AP



Approaches



Anterolateral approach - proximal 2/3 of humerus

Posterior approach / triceps split - distal 1/3 of humerus

Posterior approach with triceps flip - Holstein lewis



A.  Anterolateral Approach Humerus for proximal / mishaft fractures



Prox humerus 1Prox humerus 2Prox humerus ORIFProximal humerus ORIF



AO foundation surgical approach



Vumedi video



Indication

- proximal fractures

- midshaft fractures



Set up

- lazy beachchair

- flat with arm on arm table

- ensure can get good images of humeral head



Incision

- deltopectoral proximally (to coracoid)

- lateral humerus distally

- distally between mobile wad and biceps



Proximally

- deltopectoral groove

- identify and protect cephalic vein

- take vein laterally to minimis bleeding

- can partially release deltoid insertion if needed



Distally

- follow cephalic

- open fascia laterally

- identify plane between biceps and brachialis

- biceps swept medially

- protect musculocutaneous nerve between the two

- will emerge as lateral cutaneous nerve of the forearm distally

- identify and split brachialis in midline

- can reflect brachialis medially, but will potentially damage radial innervation of medial brachialis



Distal extension

- between brachialis and brachioradialis in distal 1/4

- find and protect radial nerve as it emerges anteriorly through lateral intermuscular septum

- may be easiest to find radial nerve most distally between brachialis and bradioradialis

- avoid lateral hohman retractors in this area



Internervous plane

- radial nerve lateral brachialis

- musculocutaneous nerve medial brachialis



Plate

- narrow large fragment 4.5 mm DCP / long Philos proximal humeral plate

- minimum 6 cortices above and below



B.  Posterior Approach and triceps split for Distal 1/3 fractures



Humerus ORIF Posterior Approach



AO foundation surgical approach



Vumedi video



Indication

- distal 1/3 fractures

- holstein-lewis fractures



Position

- lateral approach with arm over bolster



Midline incision

- split deep fascia



Proximally

- develop interval between long and lateral heads of triceps (easiest in muscle bellies proximally)

- identify radial nerve and profunda brachii artery proximally in spiral groove

- release lateral head of triceps from humerus

- limited by axillary nerve / posterior circumflex humeral artery proximally



Distally

- split triceps tendon

- reflect medial head of triceps from bone medially

- care of ulna nerve which emerges posteriorly through medial intermuscular septum



C. Posterior approach with triceps sparing for Holstein Lewis



AO foundation radial window distal humerus



Indication



Holstein Lewis / distal humerus fracture



Approach



Patient lateral with arm over bolster



A. Mobilise the lateral triceps from lateral intermuscular septum

- identify the radial nerve lateral to triceps

- follow as it passes through the lateral intermuscular septum

- identify as passes across the humerus in the groove

- may have to elevate the radial nerve and pass the plate under

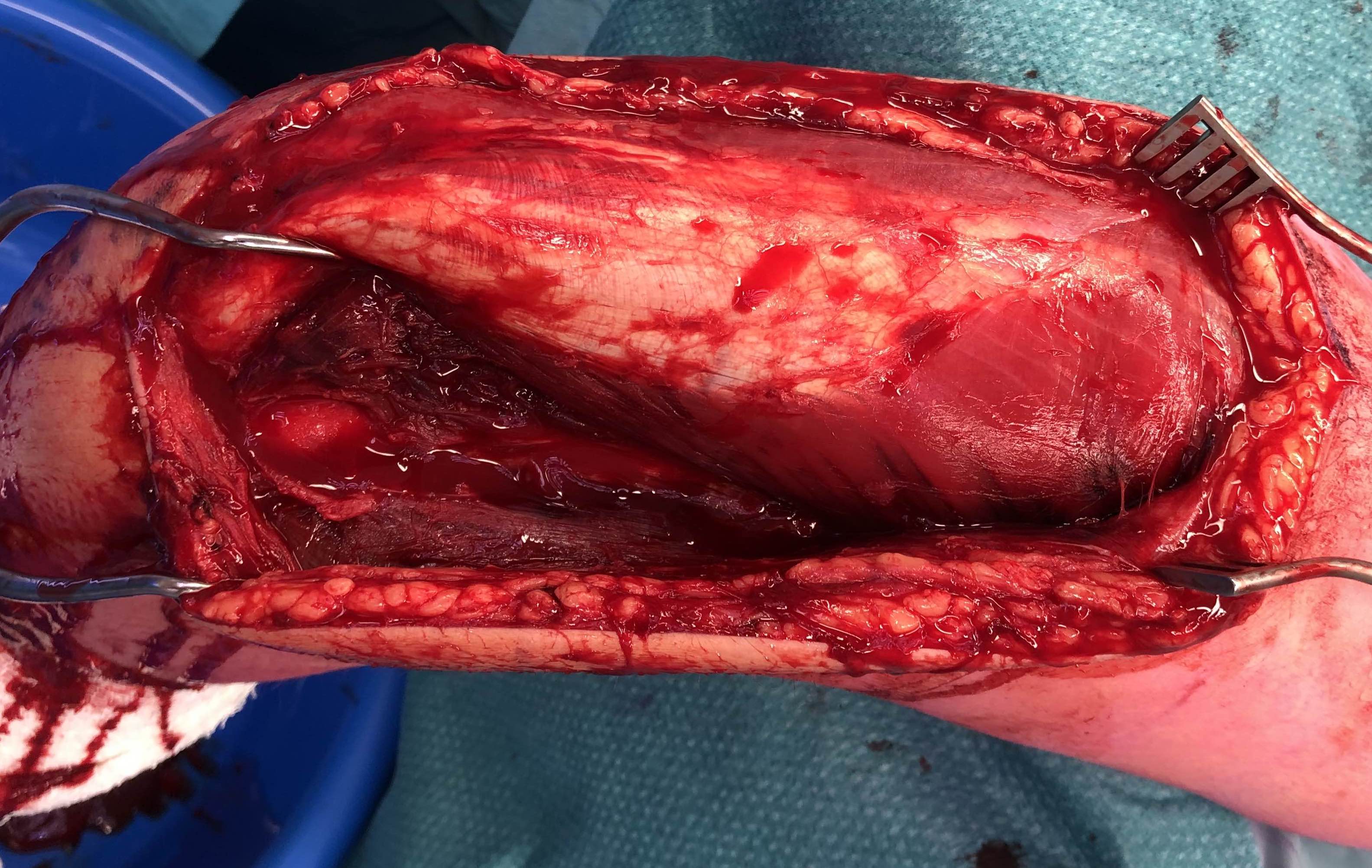

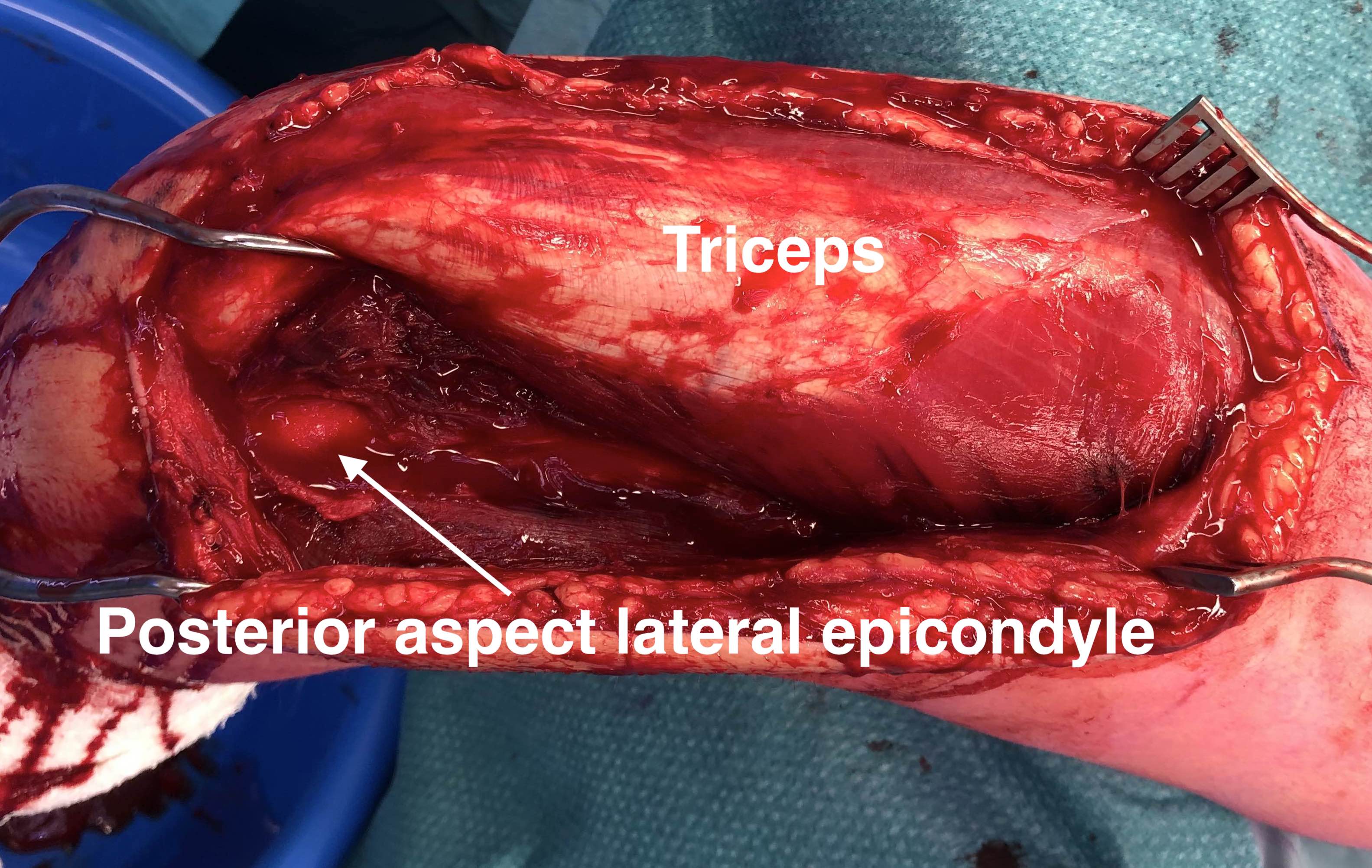

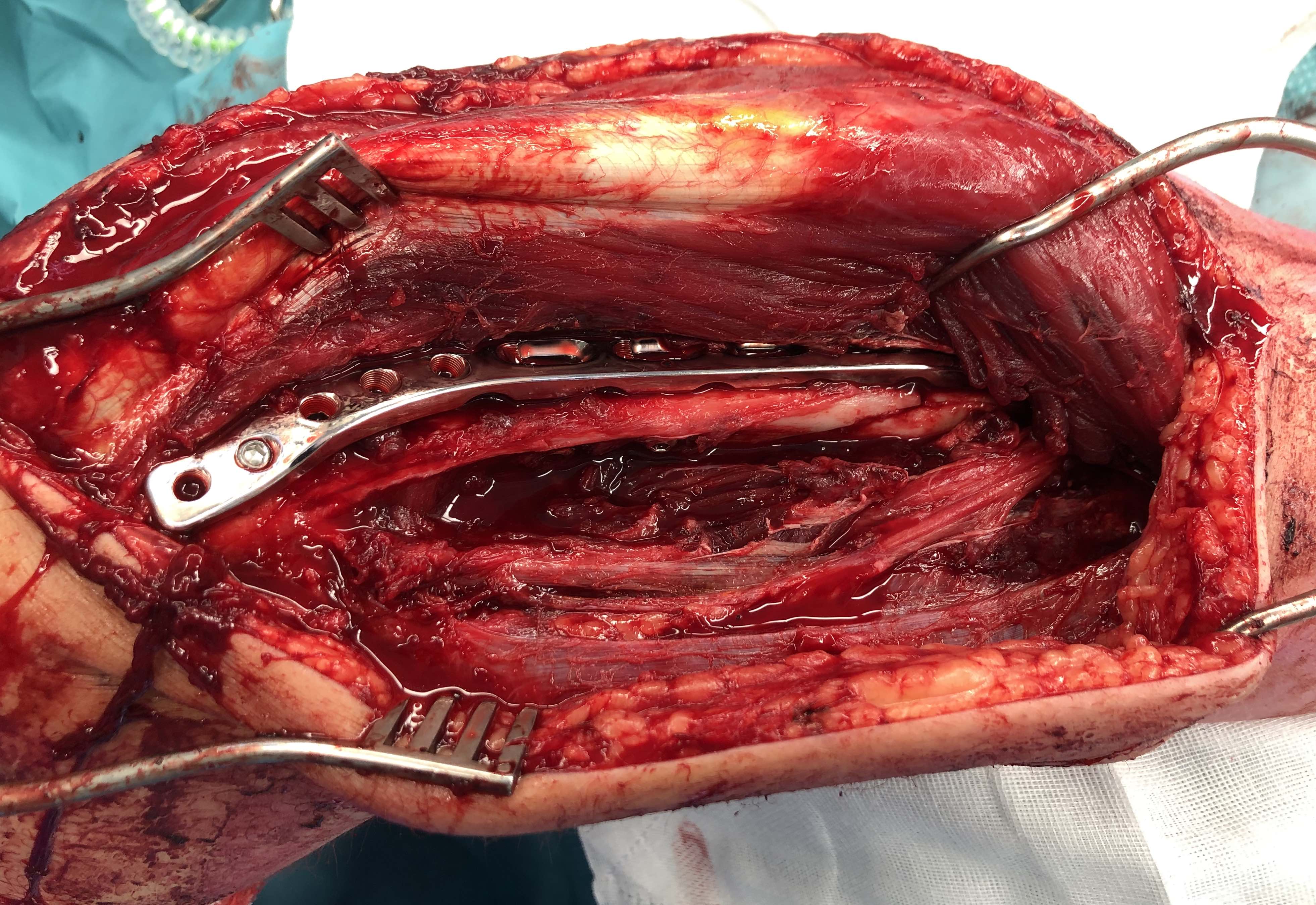

Triceps flip Triceps flip 2



Plate



Precontoured long posterolateral distal humerus plates

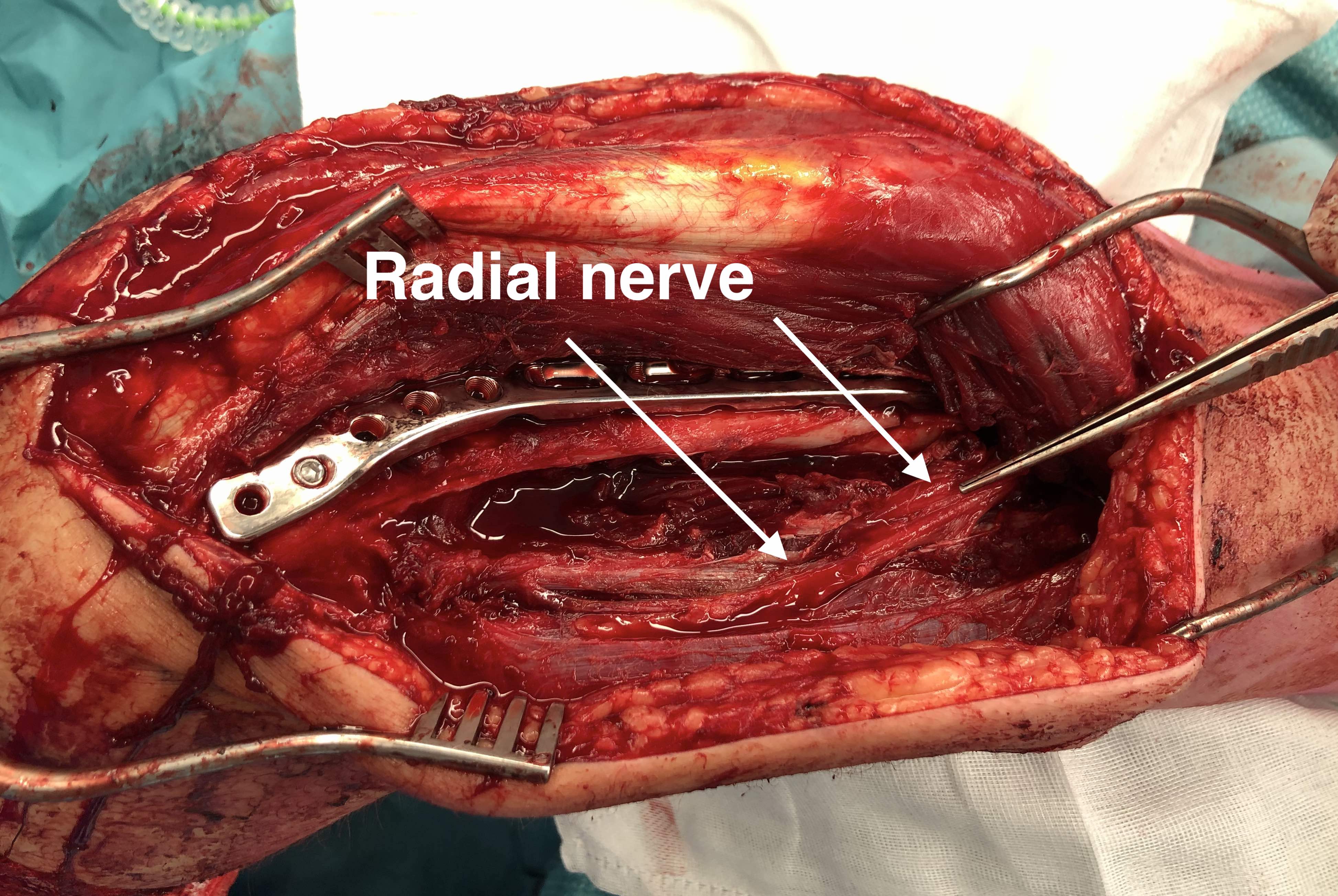

Triceps flip plate 1Triceps flip 2

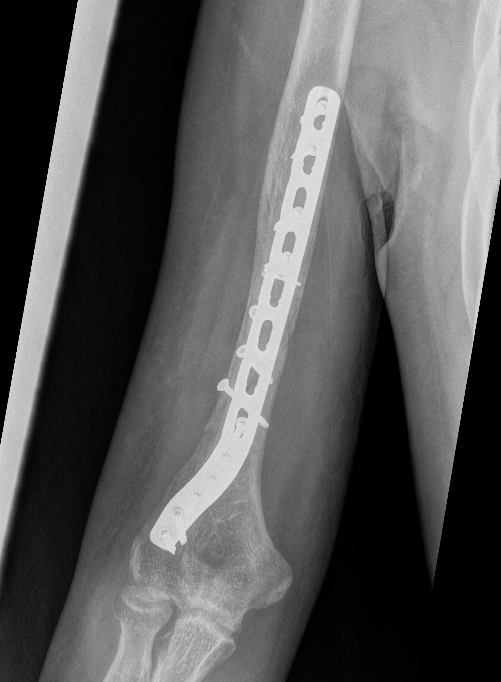

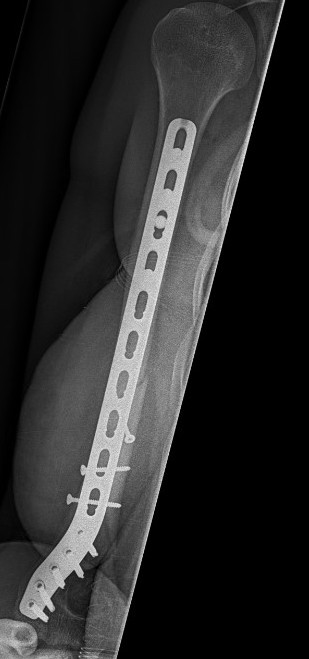

Humerus distal posterolateral plate 1Distal posterolateral plate 2

Posterolateral plate



B.  Proximal window between long and lateral heads

- slide plate under radial nerve

- fix with screws proximal and distal



Humerus # 1Distal humerus approachDistal humerus 2



Humerus # 2Humerus # 3



C. Can also mobilise medial triceps

- identify and release the ulna nerve medially

- additional medial plate if needed

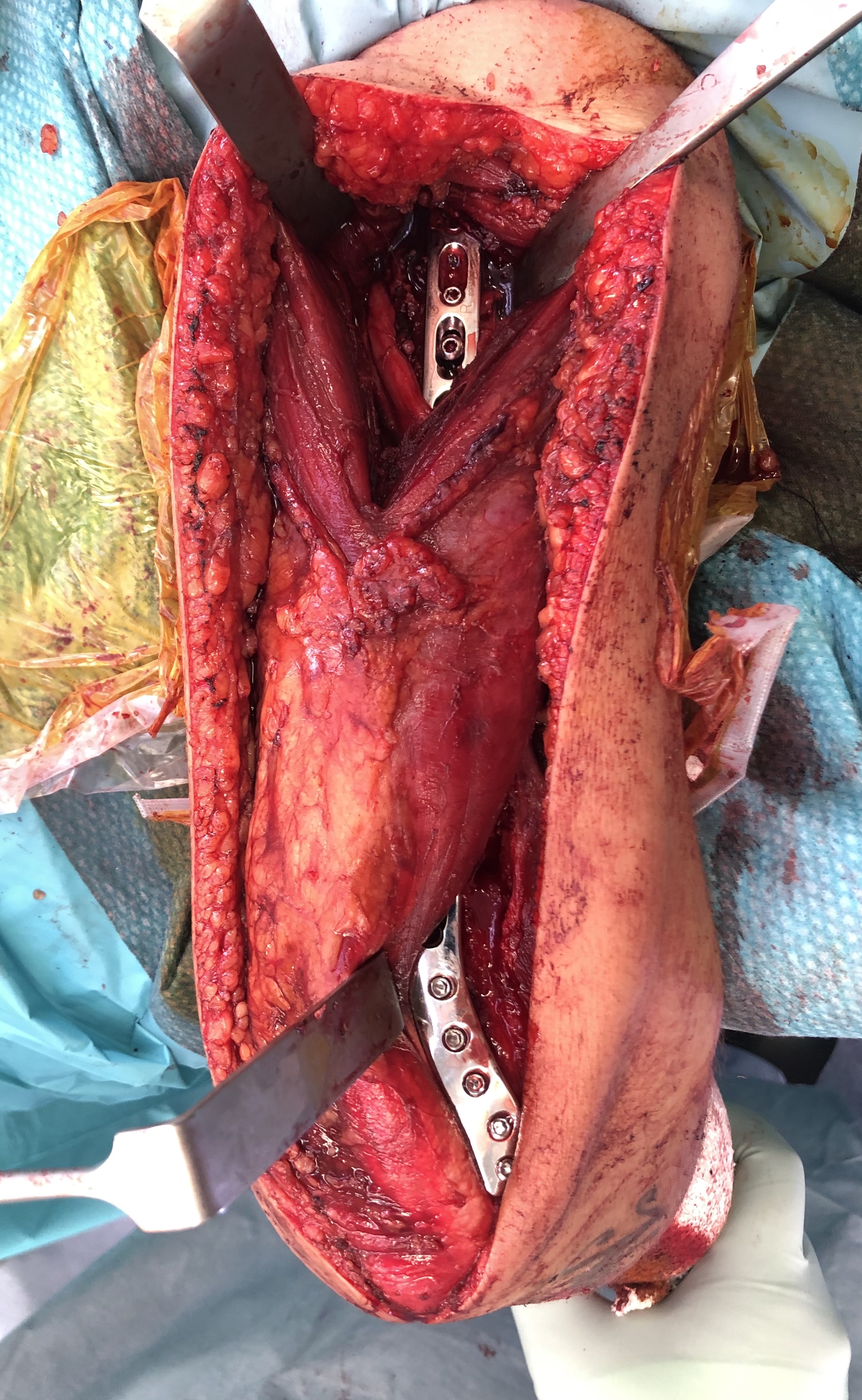

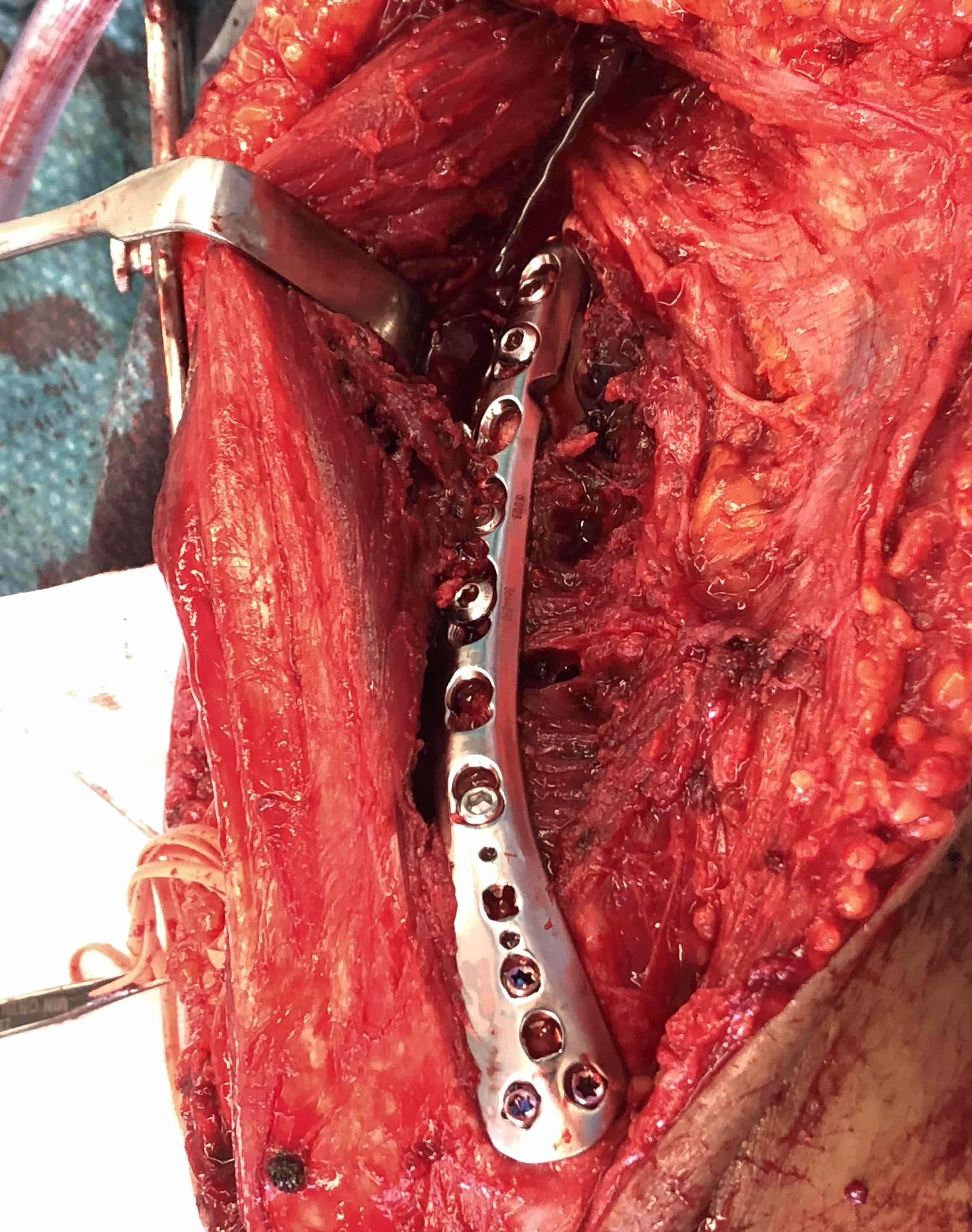

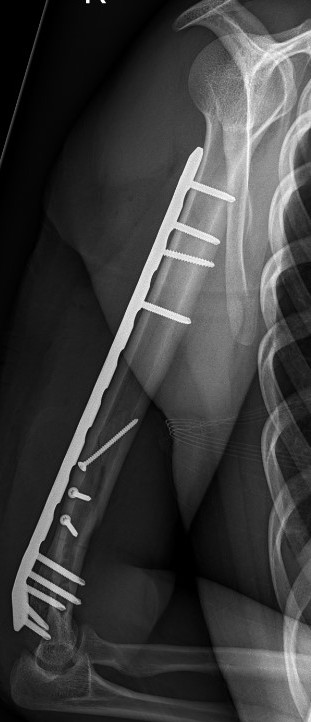

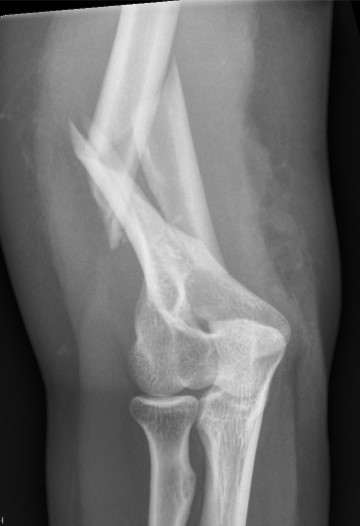

Dis HumerusLateral humerusMedial humerus

Distal humerus fracture                 Lateral plate                                        Medial plate with ulna nerve tagged



2. Minimally Invasive Plate Osteosynthesis (MIPO)



Concept



Bridge plating

Indirect fracture reduction



Indications



Surgical neck of humerus to 10 cm of elbow joint



Options



Anterior plating with narrow 4.5 mm LCP

Lateral plating with long proximal humerus plate



Jeong et al. BMC Musculoskeletal Disorders

- 18 patients treated with narrow LCP (anterior)

- 17 patients treated with long Philos plate (lateral)

- 2 metal failures in the Philos plate group requiring revision to LCP



Technique anterior MIPO plating



Tetsworth JAAOS 2018



Position

- patient supine

- arm on arm table

- ensure can image proximal humerus

- keep elbow flexed to aid reduction and reduce biceps tension



Narrow LCP plate

- place on arm to select appropriate size

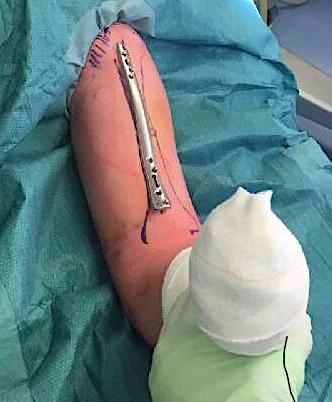

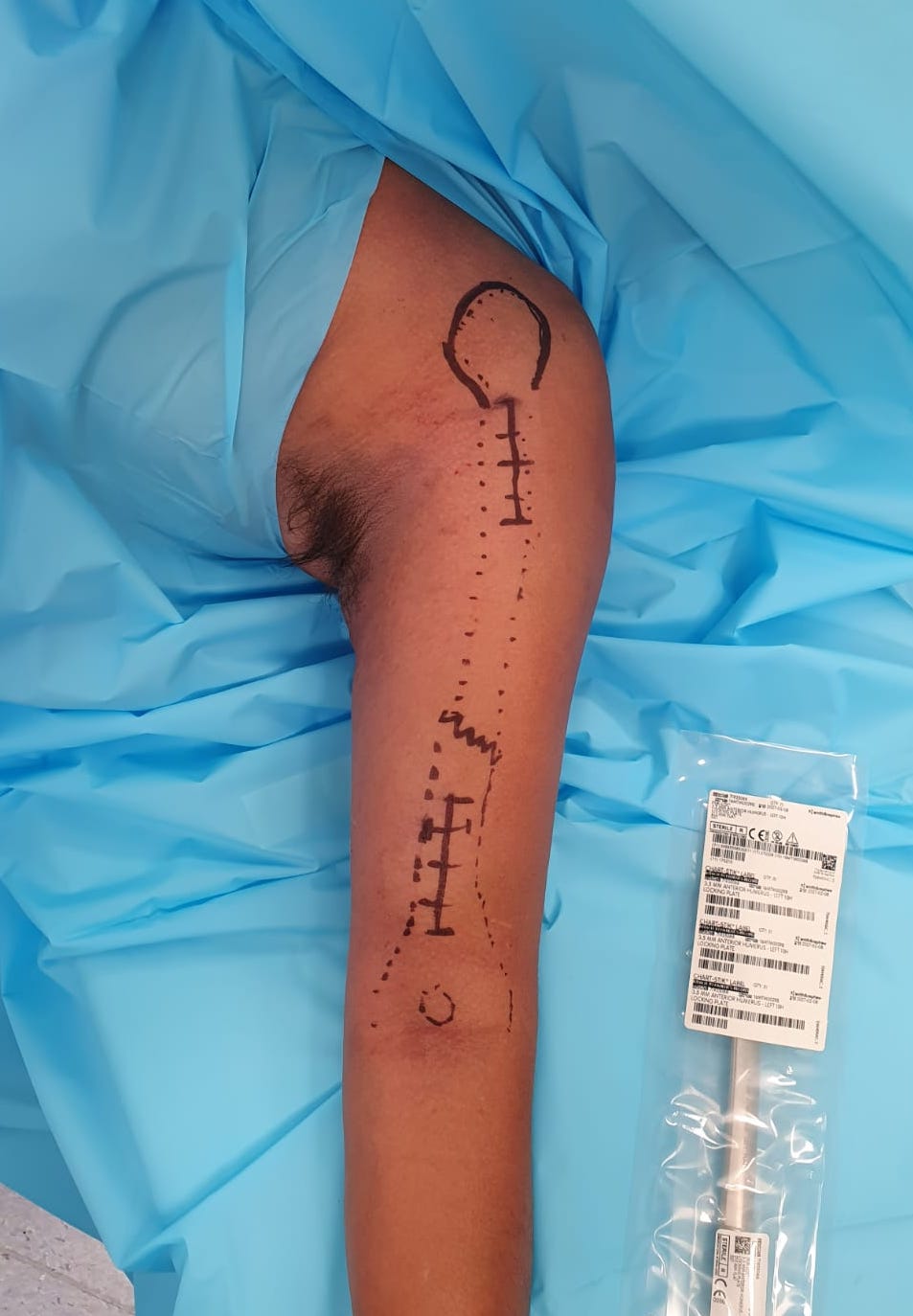

MIPO humerus 1MIPO humerus 3MIPO humerus 2



Incisions



Proximal 4 - 5 cm

- deltopectoral approach



Distal 4 - 5 cm

- anterior approach to distal humerus

- mobilise biceps laterally

- identify and protect lateral cutaneous nerve of the forearm

- split bracialis

- keep arm supinated to protect radial nerve

- avoid deep retractors laterally to protect radial nerve



Create submuscular plane

- periosteal elevator along bone



Precontour narrow LCP plate

- subtle convex curve proximally

- subtle concave curve distally

- 10 - 15 degrees internally rotated



Pass plate

- indirect fracture reduction

- secure plate proximally to bone

- reduce fracture

- distal fixation

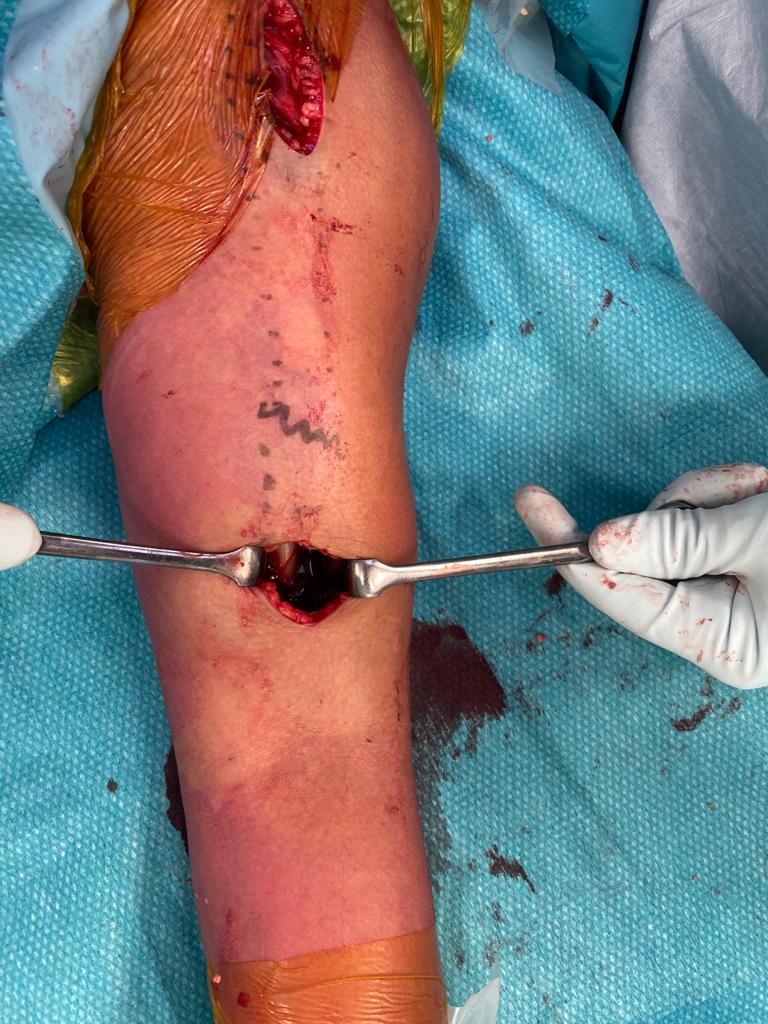

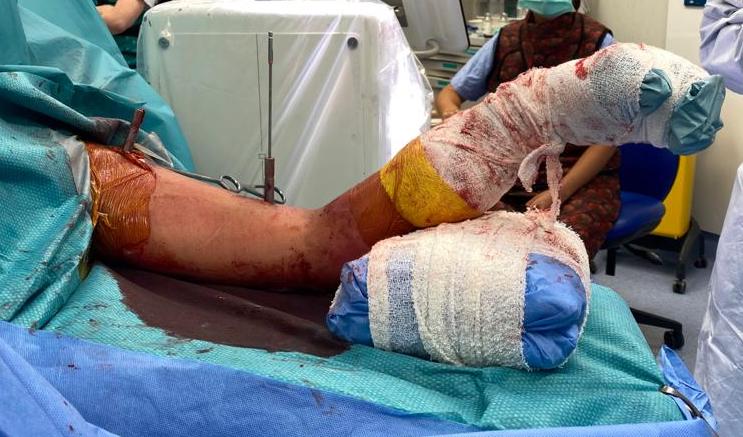

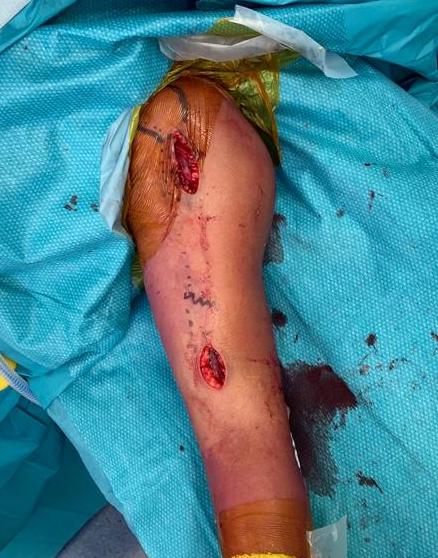

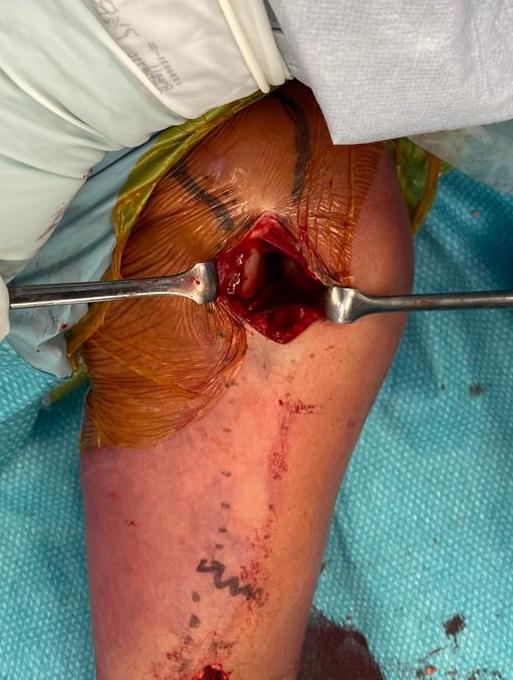

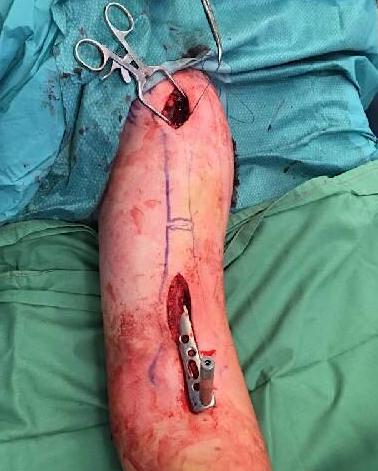

MIPO incisions 1MIPO incisions 2MIPO incisions 3MIPO plate insertion



3.  Antegrade Humeral Nail

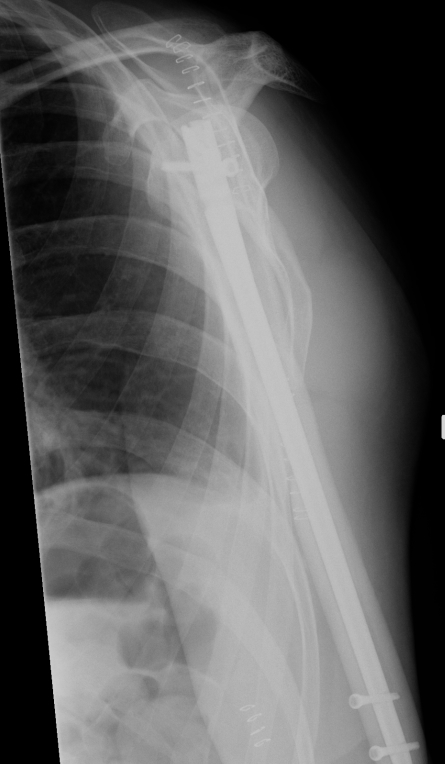

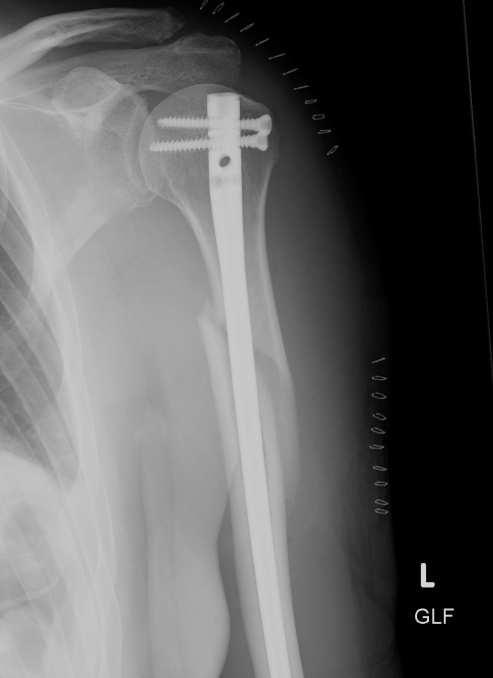

Humeral Nail APHumeral Nail Lateral



Relative indications



Segmental fracture - need very long plate

Impending pathological fracture

Obesity

Skin compromise



Technique



Vumedi video



Set up

- lazy beach chair

- can do flat on bed, with bump under shoulder

- need to get fluoroscopy of shoulder and distal forearm

- have fluroscopy come from opposite side

- patient relatively supine to ensure ease of AP distal locking



Anterolateral approach shoulder

- longitudinal split supraspinatus

- can split at the anterior edge of supraspinatus, and retract posteriorly

- protect rotator cuff throughout



Entry with K wire or awl

- entry point at medial aspect greater tuberosity

- theorectically protects the cuff tendon

- check centred in humerus canal using fluoroscopy on AP and lateral

- increase diameter proximally with hand reamers



Pass guide wire

- can do closed

- can perform mini open incision over fracture site

- use finger to blunt dissect and protect radial nerve



Minimal reaming



Pass nail

- typically 7 mm

- ensure that nail is buried enough to protect cuff

- need to consider hardware removal



Proximal locking screws

- ensure not in joint

- lateral and anterolateral

- protect biceps tendon



Distal AP locking screw/s



Careful repair of rotator cuff



Complications



Rotator cuff pain

- must not leave nail prominent

- must carefully repair cuff

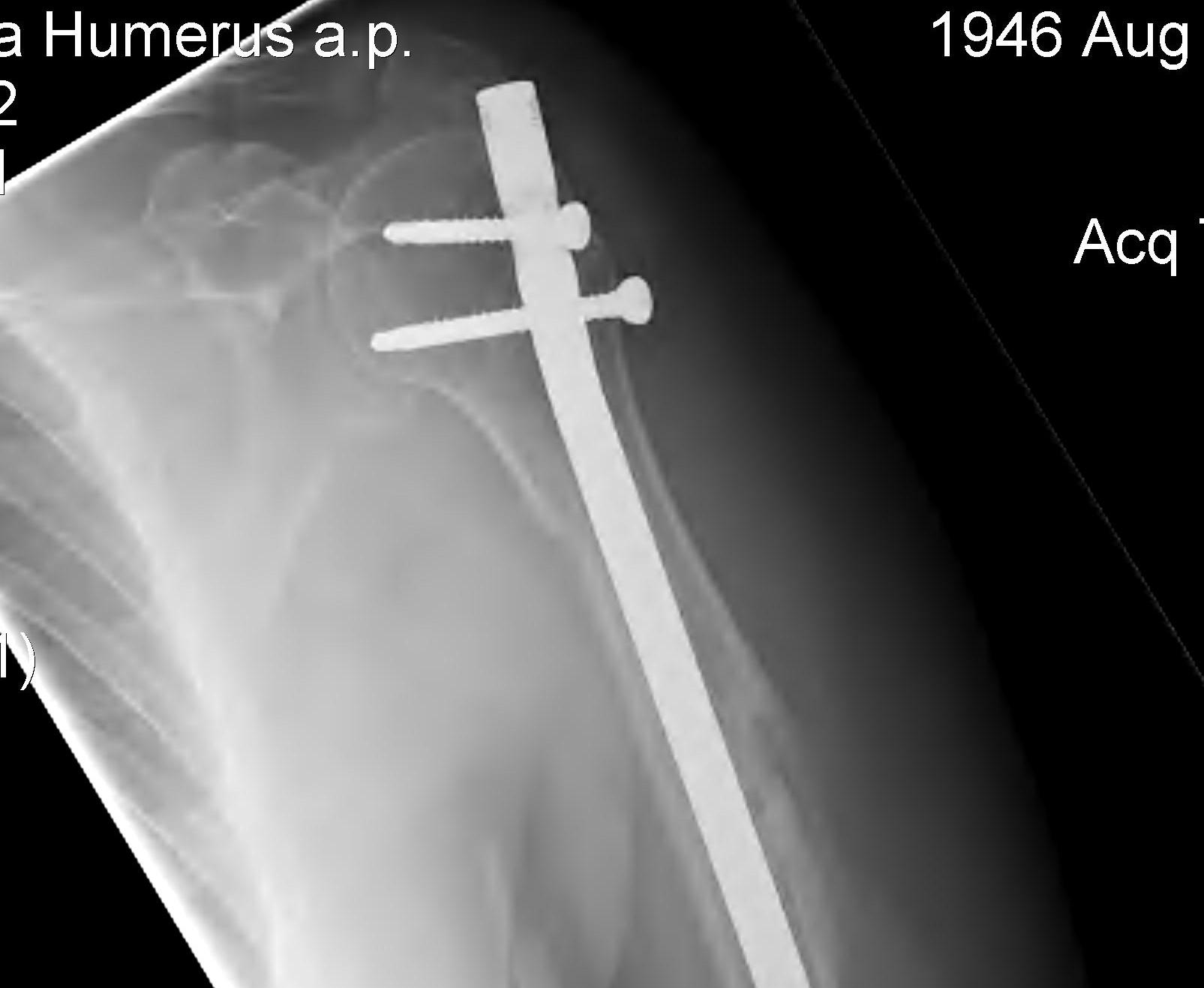

Humerus Prominent IM Nail



Non Union



Background



Definition



Mean time to union is 13 weeks

No evidence of callous on xrays taken 6 - 8 weeks apart



Fracture patterns

- highest risk is transverse fractures

- proximal humerus shaft fractures also at risk due to displacing force of pectoralis and deltoid, and LHB may interpose



Management



Peters et al. Injury 2015

- systematic review of union rate after operative intervention of humeral shaft non union

- plate only 95%

- plate and bone graft 98%

- IMN 66%

- IMN + bone graft 88%

- external fixation 98%



Technique



Vumedi video



Humerus nonunion plateHumerus nonunionHumerus nonuion plate 1Humerus nonunion plate 2



Approach

- fracture site dependant

- 4.5 mm plate with 6 cortices above and below

- if use 3.5 mm long proximal humeral plate, suggest 8 cortices below

- use iliac crest bone graft

- consider dual plating in proximal fractures with insufficient fixation, or in poor bone quality



Infection

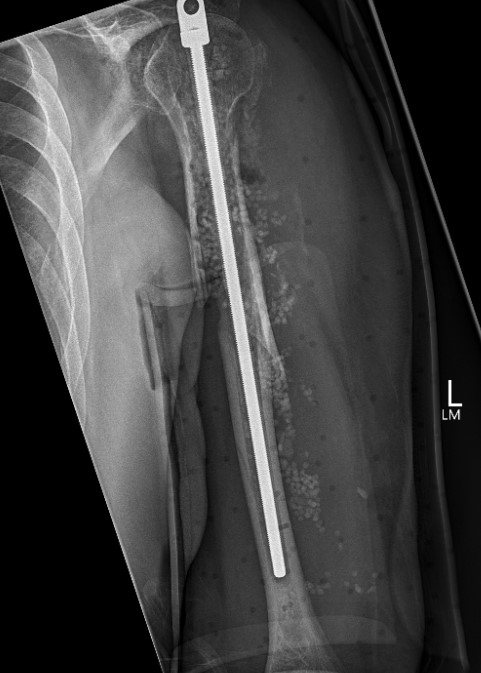

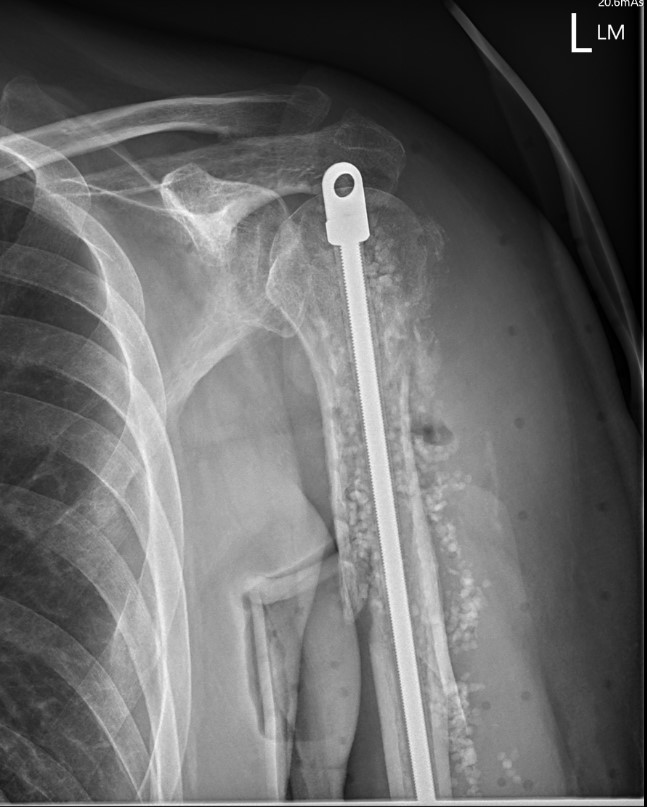

Humerus infection 1Humerus infected 2
